TOPDON

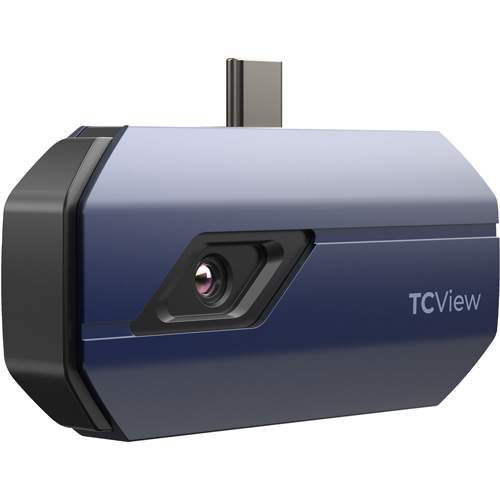

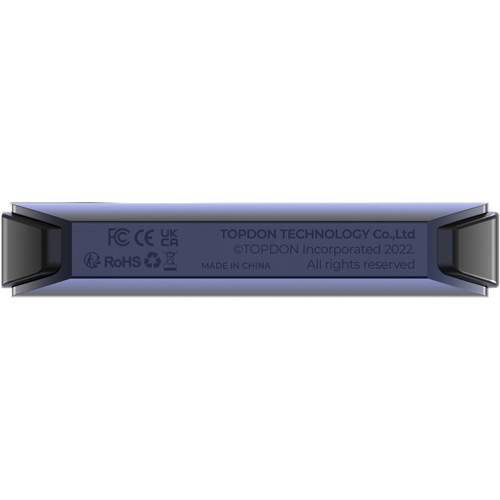

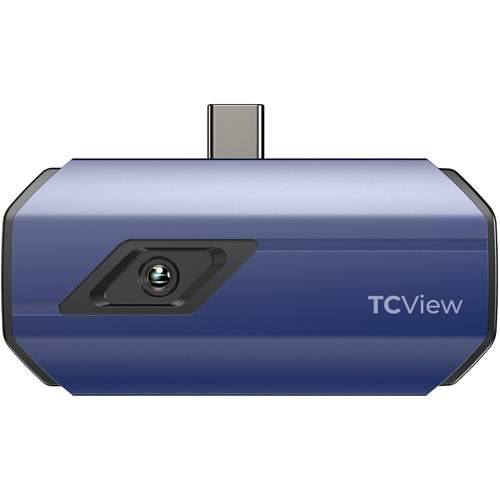

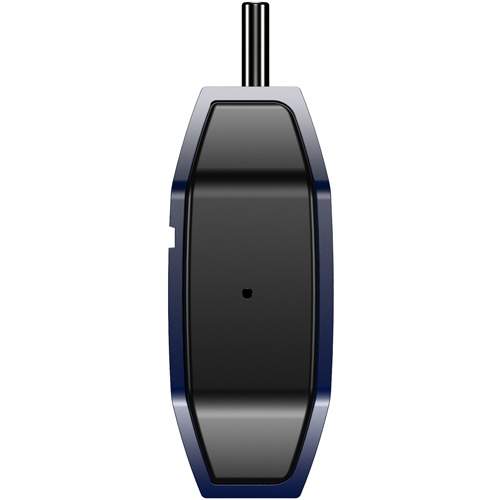

TC001 Portable Thermal Imager Camera

Part No.: TC001

|

SKU: TPDTC001

Free U.S. Shipping
  • TOPDON TC001 TC001 Portable Thermal Imager Camera

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$199.00

Ships in 11-14 days

Description

  • A portable camera that turns your Android smartphone/tablet or Windows laptop into a powerful thermal imager
  • Simply download the accompanying app, slot the TC001 in your device’s USB-C port, and unleash thermal technology that formally only belonged to special forces
  • Perfect for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to protect crops and livestock
  • Equipped with an ultra-high IR camera resolution of 256x192 pixels
  • Especially suitable for objects where surface temperature is hardly distinguishable, such as circuit boards and other electronics
  • Can perform temperature detection within ±3.6ºF (2ºC) or 2% of max temperature
  • Can also display surface temperature variations as little as 0.1ºC, allowing users to detect temperature with extreme precision
  • Users can download the app to view temperature recording data at any time and view or create real-time temperature graphs
  • Featuring a DIY temperature range ability, the TOPDON infrared thermal camera allows users to set upper and lower limits, and corresponding colors
  • Waveform graph makes thermal reading observation much clearer, and allows for easier thermal temperature analysis
  • Low power consumption of only 0.35W
  • Includes 10 different color palettes, sharpness and contrast adjustment, picture-in-picture and many other functions
  • Image enhancement technology makes the field of view clearer and more detailed, and enhances the target recognition function
  • The TC001 is plug and play and requires no registration if you only read the temperature

Specifications

Type

Thermal Imager

Weight

30 g

Spectral Range

8-14μm

Resolution

256×192 Pixels

Pixel Size

12μm

NETD

＜40mK at 25°C, F#1.0, 25Hz

Frame Rate

25 Hz

Object Temperature Range

-20 - 150°C (-4 - 302°F), 150°C - 550°C (302 - 1022°F)

Temperature Accuracy

±3.6ºF(2ºC)

Temperature Resolution

Down to 0.1ºC (0.1ºF). The potential thermal error will be less than ±1.8°F (1ºC) when the target temperature is below 212°F (100ºC)

Dimension

2.8" x 1.65" x 0.55"
