TOPDON

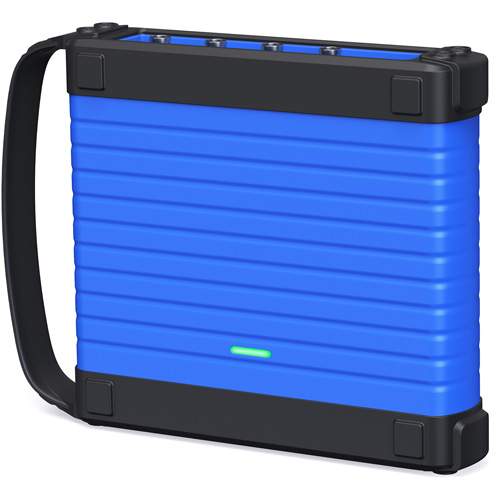

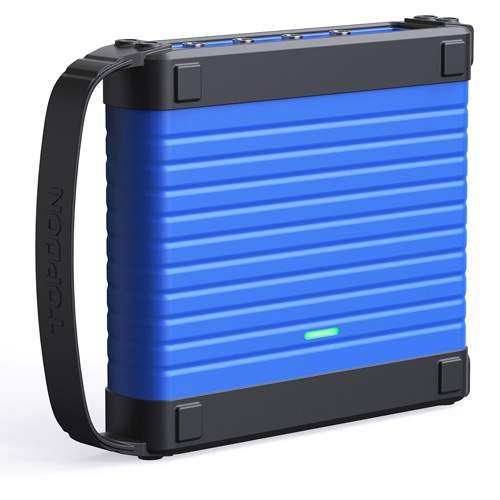

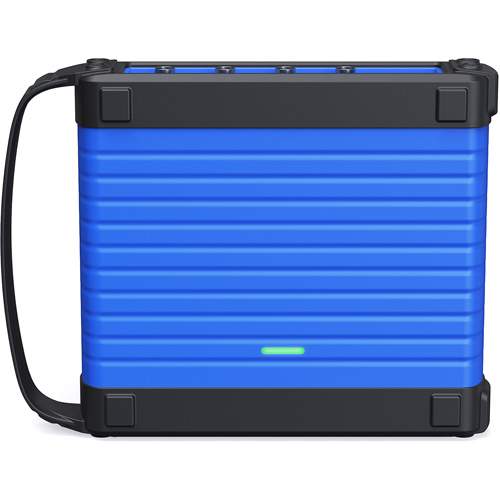

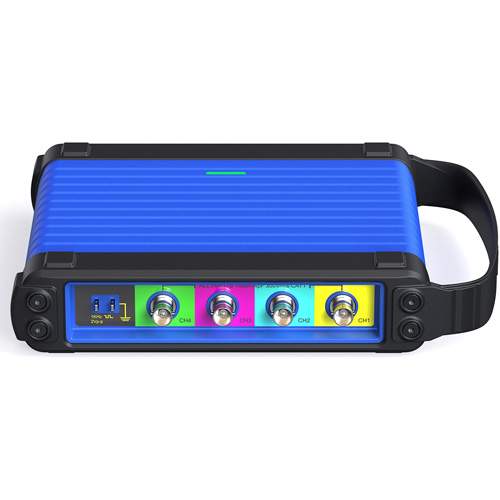

Phoenix Scope 4-Channel Oscilloscope

Part No.: PXSCOPE

|

SKU: TPDPXSCOPE

Free U.S. Shipping
  • TOPDON PXSCOPE Phoenix Scope 4-Channel Oscilloscope

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$650.00

Ships in 11-14 days

Description

  • Allows technicians to quickly diagnose issues with automotive electronics and wiring
  • Captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis
  • Can record tested signal waveforms and replay them for further observation and fault analysis
  • The Phoenix Scope is compatible with the Phoenix Max, Phoenix Smart, Phoenix Elite, Phoenix Lite 3, Phoenix Lite 2, Phoenix Plus, and Phoenix Plus 2
  • 23 Types of Automatic Measurements
  • Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient
  • Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy
  • With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed
  • Open horizontal and vertical cursors separately with one tap — each cursor can be dragged independently
  • Cursor tracking is achieved directly through a simple highlight tap, increasing overall efficiency by more than 80%
  • Various preferred system settings are available and can be saved as configuration files
  • The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel
  • Supports addition, subtraction, multiplication, and division calculations of two-channel waveforms in addition to Fast Fourier Transform
  • Supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc.
  • Various parameters and specific connection methods are preset for each kind of test

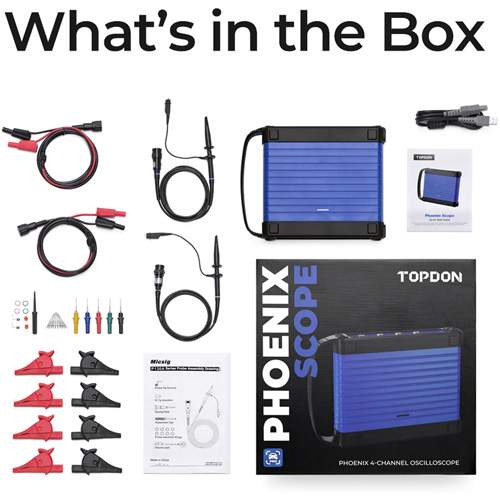

Includes

  • Phoenix Scope
  • MDCI Pro Type A to B Cable
  • Phoenix Scope Probe Assembly User Manual
  • Phoenix Scope Back Probe Pins Suite
  • Phoenix Scope Probe Assembly
  • Crocodile Clips (4 Red, 4 Black)
  • BNC to 4mm Test Leads
  • Phoenix Scope Quick Start Guide
