Sunex

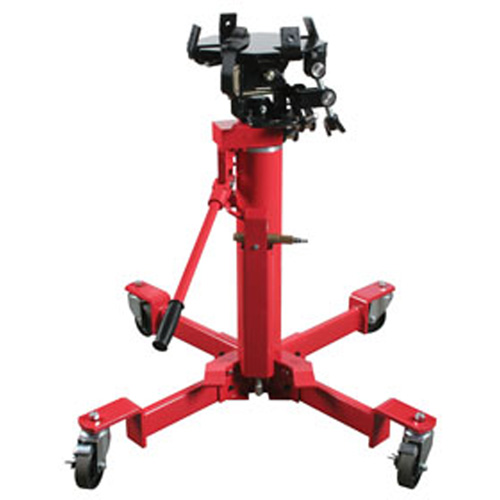

1000 lb Air & Hydraulic Telescopic Transmission Jack

Part No.: 7796

|

SKU: SNX7796

Shipping Calculated at Checkout
  • Sunex 7796 1000 lb Air & Hydraulic Telescopic Transmission Jack

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,115.75

In Stock

Description

Sunex Model 7796 1000 lb Air & Hydraulic Telescopic Transmission Jack

Same features as the model 7795 but the first stage ram is raised and lowered under 100 psi air pressure by depressing the appropriate pedal. The hydraulic second stage is raised by activating a hand pump and lowered by turning a release knob for precise control of ram speed.

    Features


  • Foot activated pump pedal for hands free raising of the rams.
  • Lowered telescopic rams enable the transmission to be transferred from the jack to the work table and extended to reach a maximum height of 74 inches.
  • Foot activated release pedal provides slow controlled lowering of load.
  • Universal saddle with four ratcheting arms quickly adjust to the transmission pan configuration.
  • Nylon strap tie down secures the load to the saddle.
  • Overload valve prevents jack from being used beyond its rated capacity.
  • Wide base legs with swivel caster, polyurethane tread wheels provide stability and easy maneuverability even under load. Two caster wheels have locking feature to prevent jack from moving.
    Specifications:
  • 1000 lbs. @ 100 PSI
  • Low Height: 35.5 in.
  • High Height: 75 in.
  • Saddle Tilt for and aft: 37 by 26 degrees
  • Saddle Tilt side to side: 12 degrees
  • Base: 30.25 in. x 20.25 in.
