OTC

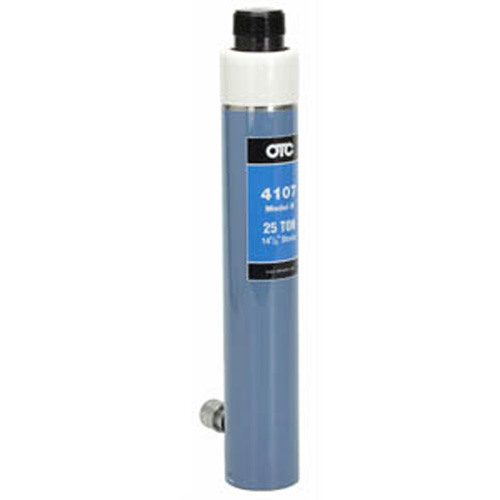

25 Ton Single-Acting Spring-Return Ram

Part No.: 4107A

|

SKU: OTC4107A

Shipping Calculated at Checkout

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,364.34

Ships June 2024

ToolDiscounter.com Ratings on Shopper Approved

Customer Reviews

Description

25 Ton Single-Acting Spring-Return Ram
    Features:
  • For maximum working pressures up to 10,000 PSI
  • 2 to 1 safety factor on material yield
  • Designed and tested to meet ANSI B30.1
  • Compact ram require a minimum of mounting space
  • Full piston return
  • Additional bearing surface has been designed into these units, to effectively resists the punishing stress exerted by off-center loads
  • Specifications:
  • Capacity in tons: 25
  • Stroke: 14 1/4 inch
  • Oil capacity: 73.5 cubic inch
  • Effective ram area: 5.157 square inch
  • Tons at 10,000 PSI: 25.8
  • Spring return
  • Height collapsed: 21 3/8 inch
  • Height extended: 35 5/8 inch
  • Piston Protrusion at collapsed height: 1 7/8 inch
  • Piston thread: 2 inches NPT
  • No collar thread, Straight: 3 5/16 inches-12
  • Internal base thread NPSM: 2 inches-11 1/2
  • Weight: 42 lb 10 oz
