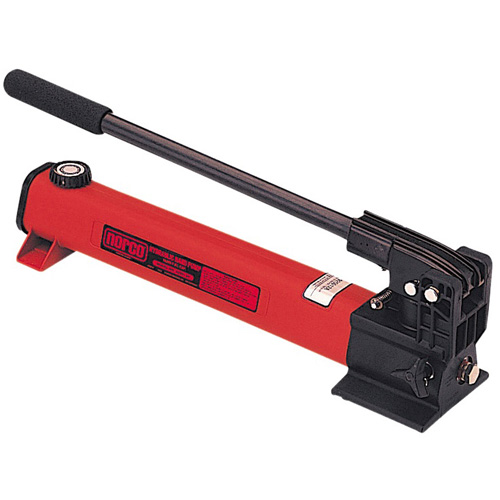

Single Speed Light Weight 10,000 PSI Hand Pump

Intended use: For many applications involving shop, agricultural, automotive/truck service needs and construction maintenance applications where high pressure pumps are required to activate cylinders rated as high as 55 ton capacity.

Features

• 3/8 NPT hose connection on all pumps.
• Internal pressure relief valves for overload protection.
• External load release valve.
• Durable glass-filled nylon reservoir and mylon encapsulated aluminum pump base for maximum corrosion resistance and lightweight handling.
• Two-speed pump operation reduces handle strokes by as much as 78 percent over single speed pumps.
• Handle lock for easy carrying.
• Non-conductive fiberglass handle for operator safety.

Specifications:
• Pressure rating: 10,000 psi
• Usable oil capacity: 55 cubic inches
• Oil displacement per stroke: 0.687/0.151 cubic inches
• Maximum handle effort: 93 lbs
• Piston stroke: 1.0 inches
• Dimensions: 21.625 inches long, 4.75 inches wide, 7 inches high
• Pump handle arc: 50 degrees
• Weight: 9 lbs
