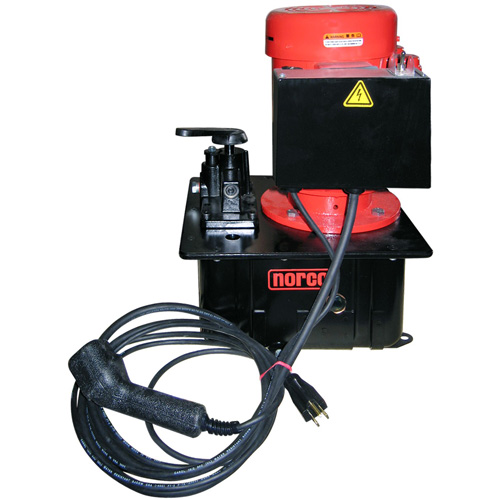

Electro Hydraulic Pump - Z Series

Intended use: Same as for the air/hydraulic pumps but will handle single-acting cylinders up to 100 tons. The added convenience of an electro-hydraulic pump reduces pumping time and effort.

Features

• Two-speed design reduces cycle time for improved productivity.
• Simgle-phase 115 VAC, 1 hp induction motor will start at full load and stand up to continuous duty applications. Requires a steady power supply.
• 10 foot pendant controls the motor operation.
• Manual advance/retract valve control for single-acting cylinders.
• LCD display provides a number of diagnostic and readout capabilities.

Specifications:
• Hydraulic pressure rating: 450/10,000 psi
• Usable oil capacity: 462 cubic inches
• Oil displacement per stroke: 400/40 cubic inches
• Current draw: 20 Amps
• Motor voltage: 115 VAC
• Sound level: 75 dBA
• Dimensions: 19 inches long, 9.75 inches wide, 23 inches high
• Weight: 73 lbs
