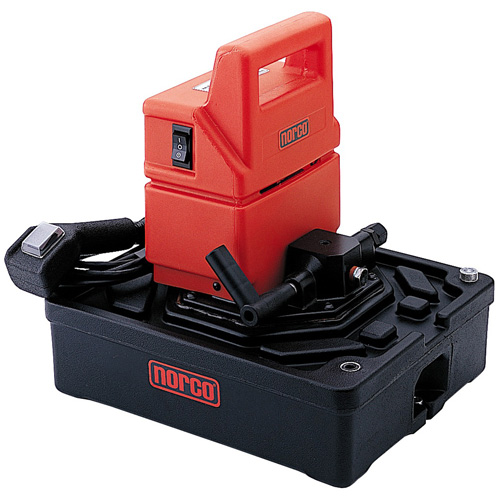

Electro Hydraulic Pump

Intended use: Same as for the air/hydraulic pumps but will handle single-acting cylinders up to 100 tons. The added convenience of an electro-hydraulic pump reduces pumping time and effort.

Features

• Lightweight and compact design.
• High strength molded shroud with integral easy-carry handle protects motor from contamination.
• 115 VAC, 1/2 hp motor operates on voltages as low as 60 volts.
• 10 foot pendant for operator safety.
• Two-speed motor design with 3-way 2-position valve for use with single-acting cylinders.

Specifications:
• Hydraulic pressure rating: 200/10,000 psi
• Usable oil capacity: 238 cubic inches
• Oil displacement per stroke: 200/20 cubic inches
• Current draw: 9.5 Amps
• Motor voltage: 115 VAC
• Sound level: 85 dBA
• Dimensions: 14-1/2 inches long, 12-1/4 inches wide, 14-3/4 inches high
• Weight: 31 lbs
