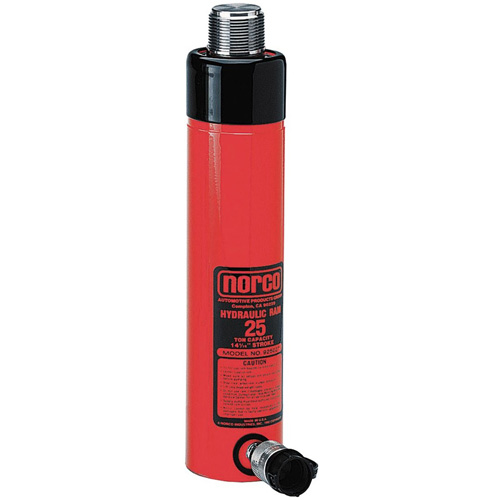

25 Ton Standard Ram, 10.25 Inch Stroke

Intended use: For many applications including shop, agricultural, automotive/truck service needs and construction maintenance applications where pushing, pulling, bending or holding may be required.

Features

• High flow quick connecting coupler and dust cap included.
• Unique piston and cylinder bearings absorb eccentric load stresses in order to protect the cylinder against abrasion, over-extending and jamming.
• Nickel plating on most cylinder pistons inhibits rusting.
• Baked enamel exterior finish for increased corrosion resistance.
• Polyurethane seals and wipers provide high cycle life.
• Heavy duty return springs provide consistent performance.
• Cylinders comply with ANSI B 30.1.

Specifications:
• Capacity: 25 tons
• Stroke: 10.25 inches
• Oil cap: 52.79 cubic inches
• Cylinder bore diameter: 2.56 inches
• Cylinder effective area: 5.18 square inches
• Return spring: yes
• Height: 14.75 inches min, 25 inches max
• Outside diameter: 2.25 inches piston, 3.38 inches cylinder
• Weight: 31 lbs
