NorcoLifting

1 Ton Under Hoist Transmission Jack

Part No.: 72700A

|

SKU: NOR72700A

Shipping Calculated at Checkout

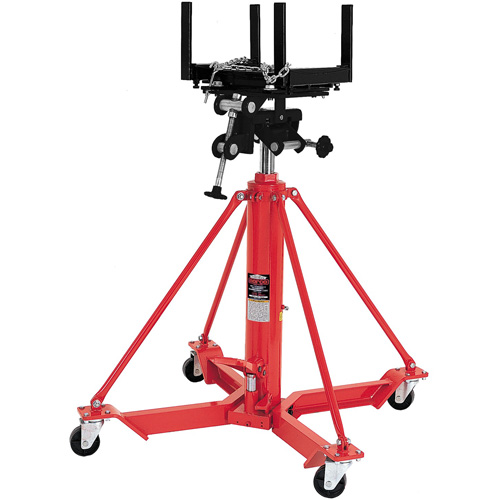

  • NorcoLifting 72700A 1 Ton Under Hoist Transmission Jack

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,927.75

Ships in 7-10 days

Description

Under Hoist Truck Transmission Jacks, 1 Ton Capacity

Designed for removal, installation and transportation (in the lowered position) of heavy duty truck transmissions that are raised by an above-ground lift.
  • Fully adjustable universal saddle with adjustable corner brackets and safety chain.
  • Safety overload system prevents jack from being used beyond its rated capacity.
  • 2 inch diameter, flash chromed, single stage ram provides added stability throughout the entire lift range.
  • Foot operated pump and lowering pedals allow use of both hands to position and align saddle with transmission.
  • Wide base with four 3 7/8 inch diameter heavy duty swivel ball bearing caster wheels provides stability and easy maneuvering.
  • Capacity: 1 Ton
  • Lift Range: Low-45 3/4 inches, High-74 1/4 inches
  • Base Size: 38 x 38 inches
  • Saddle Tilt: Forward-45 degrees, Back-24 degrees, Side-±22 degrees
  • Shipping Weight: 292 pounds
