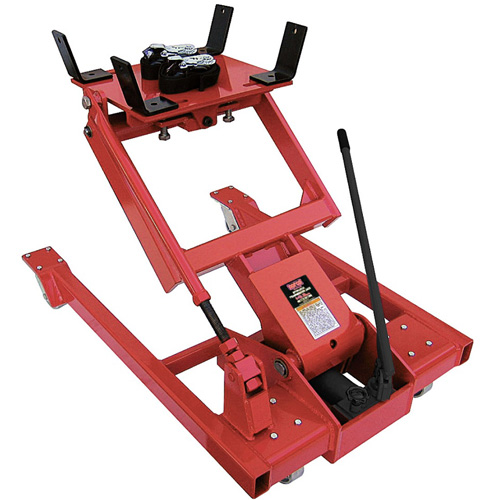

1-1/2 Ton Truck Transmission Jack

Intended use: For heavy truck transmissions. Ideally suited for truck dealers, maintenance and heavy duty transmission repair centers.

Features:
• Wide chassis opening plus a broad lift range to handle a large variety of transmission configurations.
• Fully adjustable saddle with adjustable angle brackets to position the transmission.
• Four 4-inch high riser tubes to handle transmissions with offset transfer cases.
• Four heavy duty ratchet tie-downs conveniently secure the load to the lifting saddle.
• Safety by-pass and overload systems to prevent cylinder damage and prevent the jack from being used beyond its rated capacity.
• Full 360 degree rotating handle operates in any position.
• Flash chromed ram inhibits rust from entering the hydraulic system.
• Four full-swivel ball bearing caster wheels for easy positioning.

Specifications:
• Capacity: 1-1/2 tons
• Lift range: 4.75 inches low, 36.5 inches high
• Caster wheel diameter: 4 inches
• Chassis: 32.75 inches wide, 43.25 inches long, 12 inches high
• Saddle size: 18.25 x 15.25 inches
• Saddle tilt: 20 degrees forward, 20 degrees back, +/- 11 degrees side
• Shipping weight: 414 lbs
