Mastercool

Turbo/Intake Diagnostic Smoke Machine

Part No.: 43060-TB

|

SKU: MAS43060-TB

Free U.S. Shipping

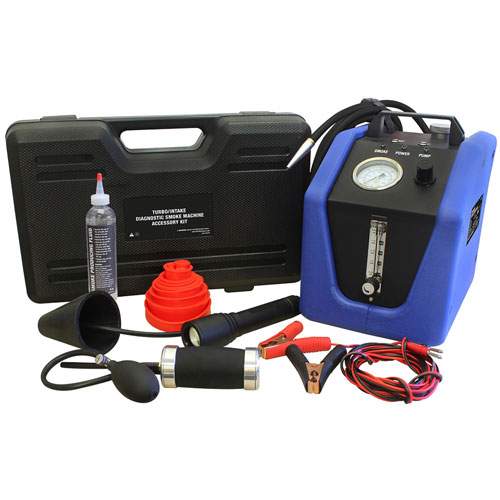

  • Mastercool 43060-TB Turbo/Intake Diagnostic Smoke Machine

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$817.50

Ships in 2-3 weeks


Description

Turbo/Intake Diagnostic Smoke Machine

    Features

  • compact, heavy-duty design for years of reliable service
  • multiple options for smoke injection include built-in internal compressor, shop air and inert gases
  • quick smoke generation
  • built-in safety pressure relief valve
  • pressure can be regulated from 0-28 psi
  • large easy to read pressure decay gauge (0-30 psi)
  • non-toxic and non-corrosive smoke
  • 10 foot 12V power cables with durable clamps
  • heavy duty 10 foot smoke injection hose
  • Velcro strap for hose and power cable storage

    applications:
  • turbo
  • intakes
  • exhaust
  • vacuum lines and vacuum components
  • manifolds
  • passenger compartment window and sunroof
  • headlight/tail-light fixtures
  • NOT FOR EVAP TESTING

    specifications
  • voltage: 12 VDC
  • input pressure: max 100 psi (8.2 bar)
  • output pressure: internal pump (max 22 psi) / external pressure source (max 28 psi)
  • safety pressure relief: 120 (+/- 5) psi
  • oil fill line indicator: 3.4 oz
  • flow meter: 0-0.040 in (0-1 mm)
  • dimensions: 11.8 x 8.1 x 11 inch (300 x 205 x 280 mm)
  • unit weight: 11.5 lbs (5.2 Kg)
  • shipping weight: 22 lbs (10 Kg)
  • power consumption: max 6.5 amps
  • operating temperature: 0 to 140 F (-17 to 60 C)
  • operating humidity: no restrictions
  • operating altitude: no restrictions
  • vapor output hose: 10 feet
  • power cable: 10 feet
  • pressure supply: air/inert gas/pump
