Mastercool

Black Series 9 CFM Vacuum Pump (2-Stage)

Part No.: 90068-2V-110-BL

|

SKU: MAS90068-2V-110-BL

Free U.S. Shipping
  • Mastercool 90068-2V-110-BL Black Series 9 CFM Vacuum Pump (2-Stage)

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$348.29

Ships in 7-10 days

Description

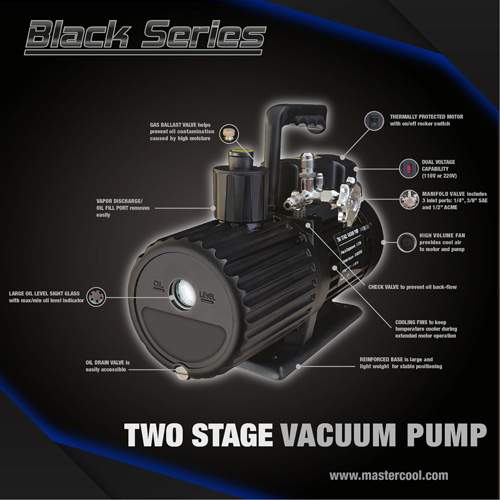

  • Refined cartridge machining process creates an improved surface finish, extending the longevity of the pump life
  • Expanded internal oil path reduces friction and heat generation
  • Upgraded seals ensure maximum vacuum
  • U.S. designed and tested
  • Easy grip handle for convenient use
  • Gas ballast valve prevents oil contamination caused by high moisture
  • Easily removable vapor discharge and oil fill port
  • Large oil level sight glass with max/min level indicator
  • Easily accessible oil drain valve
  • Thermally protected motor with on/off rocker switch
  • Manifold valve isolates the pump from the system during leak testing, includes 3 inlet ports: 1/4", 3/8" SAE, and 1/2" ACME
  • High volume fan provides cooling air to the motor and pump
  • Check valve prevents oil back-flow
  • Cooling fins keep temperature cooler during extended operation
  • Large, lightweight reinforced base ensures stable positioning
  • Stages: 2
  • Free air displacement: 8 CFM
  • Ultimate vacuum: 15 microns
  • Motor: 3/4 HP
  • Pump speed: 1720 RPM
  • Electrical specs: 110/220 V, 50/60 Hz
  • Power: 110 V cable
  • Weight: 34.5 lbs (15.65 kg)
  • Dimensions: 38 x 18 x 27 cm
