Fluke

Insulation Resistance Tester

Part No.: 1507

|

SKU: FLU1507

Free U.S. Shipping

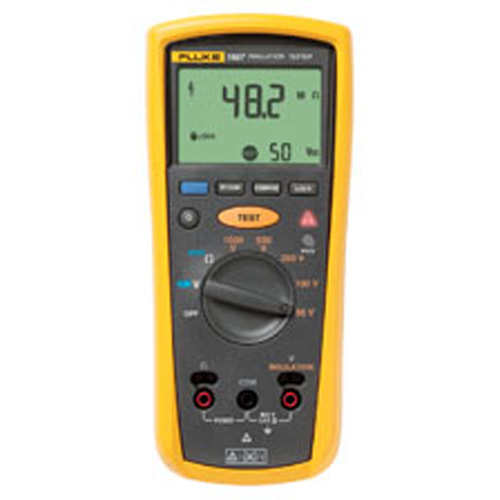

  • Fluke 1507 Insulation Resistance Tester

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$817.19

LOGIN for best possible pricing!

Ships in 5-8 weeks

Description

Fluke Insulation Resistance Testers

    Features:
  • Compact, rugged, reliable, and easy to use. With their multiple test voltages, they are ideal for many troubleshooting, commissioning, and preventative maintenance applications.
  • Additional features, like the remote probe on these tools save both time and money when performing tests.
  • Insulation test range: 0.01 MOhms to 10 GOhms
  • Insulation test voltages:50 V, 100 V, 250 V, 500 V, 1000 V
  • Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio (only available on the1507)
  • Make repetitive tests simple and easy with the 1507s Compare (Pass/Fail) function (only available on the 1507)
  • Repetitive or hard-to-reach testing is easy with the remote test probe
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • Auto-discharge of capacitive voltage for added user protection
  • AC/DC voltage: 0.1 V to 600 V
  • 200 mA Continuity
  • Resistance: 0.01 Ohms to 20.00 kOhms
  • Save battery power with auto power off
  • Read measurements easily with large, backlit display
  • CAT IV 600 V overvoltage category rating for added user protection
  • Remote probe, test leads, probes and alligator clips included with each tester
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
  • One year warranty
    • Specifications:
    AC/DC Voltage Measurement
    Accuracy:
  • Range: 600.0 V
  • Resolution: 0.1 V
  • 50 Hz to 400 Hz +/- (% of Rdg + Digits): +/- (2 % + 3)
  • Input impedance: 3 MOhms (nominal), < 100 pF
  • Common mode rejection ratio (1 kOhms unbalanced): > 60 dB at dc, 50 or 60 Hz
  • Overload Protection 600 V rms or dc
    • Earth bond resistance measurement
    Range/Resolution
  • 20.00: Ohms 0.01 Ohms
  • 200.0: Ohms 0.1 Ohms
  • 2000: Ohms 1.0 Ohms
  • 20.00: kOhms 0.01 kOhms
  • Accuracy: +/- (1.5 % + 3)
  • Overload Protection: 2 V rms or dc
  • Open Circuit Test Voltage: > 4.0 V, < 8 V
  • Short circuit current: > 200.0 mA
    • Insulation specifications
  • Measurement Range 1507: 0.01 MOhms to 10 GOhms
  • Test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V
  • Test Voltage: Accuracy + 20 %, - 0 %
  • Short circuit current: 1 mA nominal
  • Auto Discharge: Discharge time < 0.5 second for C = 1 pF or less
  • Live circuit indicator: Inhibit test if terminal voltage > 30 V prior to initialization of test
  • Maximum Capacitive Load: Operable with up to 1 pF load
    • Measure Accuracy:
  • 50 V: +/-(3 % + 5)
  • 100 V: +/-(3 % + 5)
  • 250 V: +/-(1.5 % + 5)
  • 500 V: +/-(1.5 % + 5)
  • 1000 V: +/-(1.5 % + 5) to 2000 MOhms, ±(10 % + 3) above 2000 MOhms
    • General Specifications
  • Maximum voltage applied to any terminal: 600 V ac rms or dc
  • Storage Temperature-40 C to 60 C (-40 F to 140 F)
  • Operating Temperature-20 C to 55 C (-4 °F to 131 F)
  • Temperature Coefficient0.05 x (specified accuracy) per C for temperatures < 18 C or > 28 °C (< 64 F or > 82 F)
    • Relative Humidity
  • 0 % to 95 % @ 10 C to 30 C (50 F to 86 F)
  • 0 % to 75 % @ 30 C to 40 C (86 F to 104 F)
  • 0 % to 40 % @ 40 C to 55 C (104 F to 131 F)
  • Vibration Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
  • Shock 1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
  • Electromagnetic compatibility: In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)
  • Safety Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)
  • Certifications: CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition
  • BatteriesFour AA batteries (NEDA 15A or IEC LR6)
  • Battery Life Insulation test use: Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MOhms with a duty cycle of 5 seconds on and 25 seconds off.
  • Resistance measurements: Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ohms with a duty cycle of 5 seconds on and 25 seconds off.
  • Size 5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in W x 8.00 in L)
  • Weight550 g (1.2 lb)
  • IP Rating IP40
  • Altitude: Operating: 2000 m CAT IV 600 V, 3000 m CAT III 600 V
  • Non-operating (storage): 12,000 m
  • Over-range capability: 110 % of range
  • Included accessories: TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe
    • Insulation Tester Includes:
  • Remote probe
  • Test leads
  • Test probes
  • Alligator clips
  • Holster
  • User documentation
