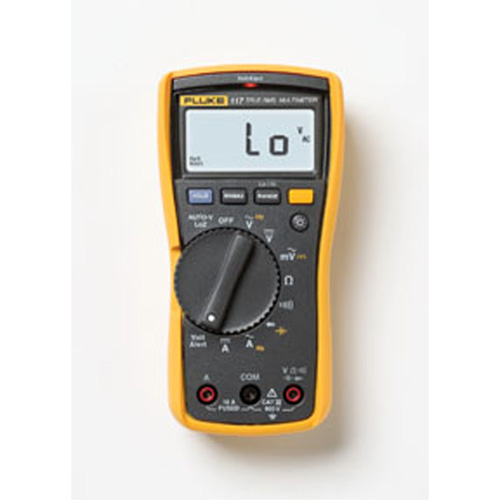

Electrician's Digital Multimeter with Non-Contact Voltage
The Fluke 117 is the meter for demanding settings like commercial buildings, hospitals and schools. New DMM functionality designed to make the electrician's job easier than ever before.
innovative features:
- VoltAlert(TM) non-contact voltage detection
- Sense the presence of AC voltage without carrying a second tool
- Quickly determine proper grounding with visual indicator
- Auto-V automatic volts detection
- Automatically determine AC/DC voltage, eliminating guesswork
- Correctly displays the voltage measurement without extra steps
- LoZ - Low impedance input
- Reduces chance of false readings due to ghost voltage with new low impedance design
- Safer troubleshooting in high energy 3-phase distribution panel with IEC 61010 ratings
other major Fluke 117 features:
- True-RMS for accurate measurement on non-linear loads
- 20A measurements (30 seconds momentary, 10A continuous)
- Resistance, continuity, frequency and capacitance
- Min/Max/Average to record signal fluctuations
general specifications:
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. The accuracy specifications take the form of: ± ( [ % of reading ] + [ counts ] )
- Maximum voltage between any terminal and earth ground: 600 V
- Surge protection: 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
- Fuse for A input: 11 A, 1000 V FAST Fuse (Fluke PN 803293)
- Display Digital: 6,000 counts, updates 4/sec
- Bar graph: 33 segments, updates 32/sec
- Operating temperature: -10 °C to + 50 °C
- Storage temperature: -40 °C to + 60 °C
- Battery: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
- Battery life: 400 hours typical, N10140 without backlight
included:
- TL75 Test Leads
- Holster
- User's Manual
- 9 V battery (installed)
