ESCO

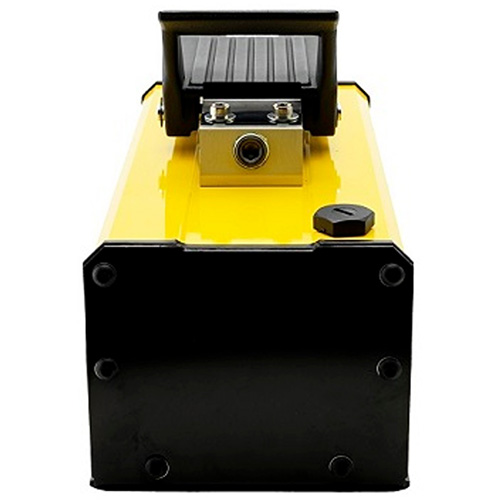

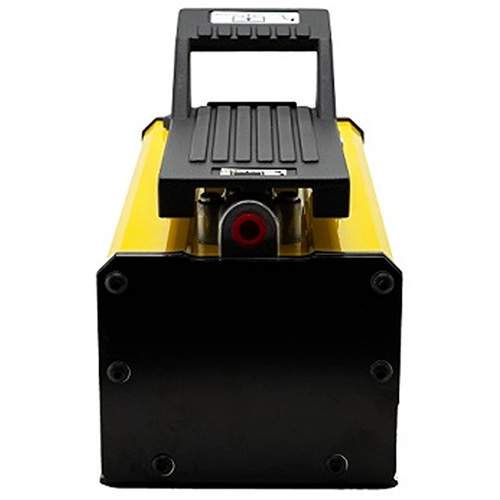

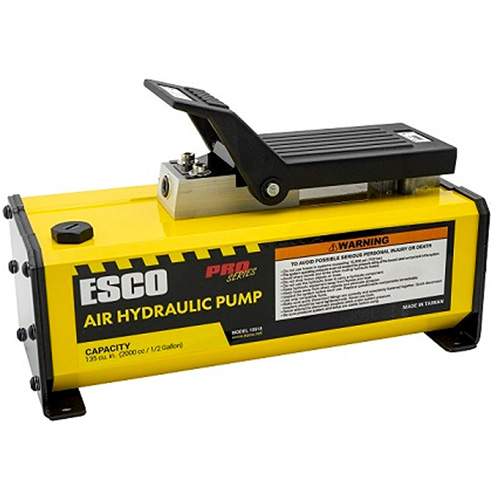

Pro Series 1/2 Gallon Air Hydraulic Pump 135 cu in.

Part No.: 10518

|

SKU: ESC10518

Free U.S. Shipping
  • ESCO 10518 Pro Series 1/2 Gallon Air Hydraulic Pump 135 cu in.

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$649.95

LOGIN for best possible pricing!

Ships in 3-6 days

Description

  • For use with a variety of hydraulic rams, cylinders, presses, bead breakers, and other hydraulic equipment requiring 10,000 psi for operation.
  • Equipped with an air exhaust muffler for quiet pumping of the air motor.
  • Air and oil inlet filters for reducing the risk of damage from contamination.
  • Durable, lightweight design great for service trucks, shop environments, or out in the field.
  • Internal pressure relief valve system (load limit device) for overload protection.
  • Foot pedal design for hands-free use of hydraulic pump.
  • Engineered with durable lightweight and corrosive-resistant plastic components increasing the life of the air motor and hydraulic pump.
  • Designed with mountable feet for service trucks, shops, presses, or other hydraulic applications.
  • Includes installable fluid level dipstick to check that the appropriate amount of hydraulic fluid is installed.
  • Hydraulic hose is sold separately.
  • Hydraulic Pressure: 10,000 PSI
  • Usable Oil Capacity (Cubic In.): 135 cu. in.
  • Output Flow Rate (Cu. In. Per Min.):
    • No Load: 80.5 cu. in.
    • Load: 12.8 cu. in.
  • Air Pressure Range: 40-170 PSI
  • Air Consumption (scfm): 24 scfm
  • Valve Function: Increase Hydraulic Fluid Pressure / Release Hydraulic Fluid Pressure
  • Sound Level (dbBa): 85 dbBa
  • Reservoir Material: Aluminum
  • Threaded Connections Sizes:
    • Air Inlet: 1/4"-18 NPT
    • Hydraulic Hose Inlet: 3/8"-18 NPTF
  • Dimensions (Product): 12.5 (L) x 5.75 (W) x 8 (H) in.
  • Dimensions (Packaging): 15 (L) x 7 (W) x 8.5 (H) in.
  • Bottom Plate Screw Hole Size (4): 3/8" in.
  • Bottom Plate Length (from hole center): 11.73 in.
  • Bottom Plate Width (from hole center): 4.33 in.
  • Weight: 22 lbs.
  • Warranty: 3-Year
  • UPC: 816904025014
