ESCO

Calcium Chloride Liquid Transfer Pump

Part No.: 10543

|

SKU: ESC10543

Free U.S. Shipping

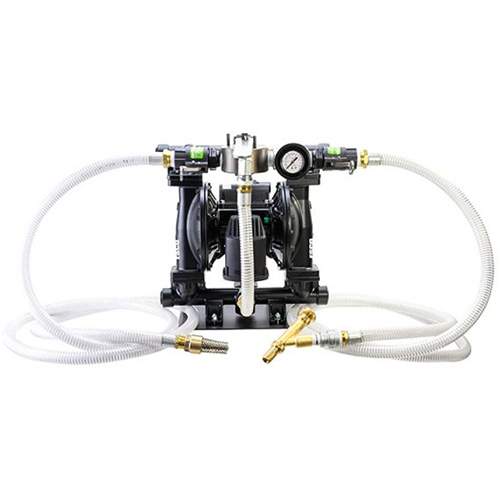

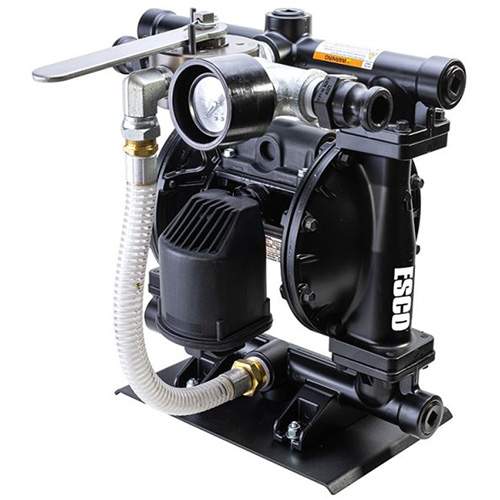

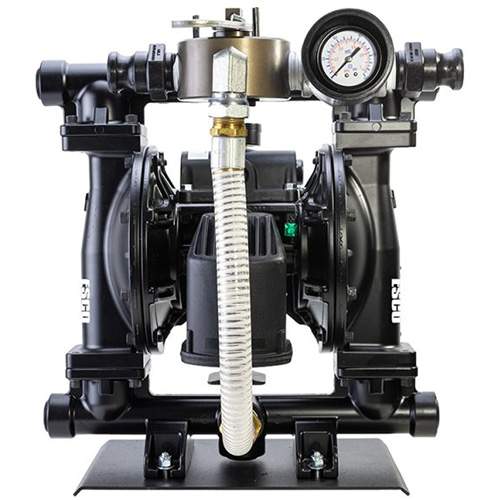

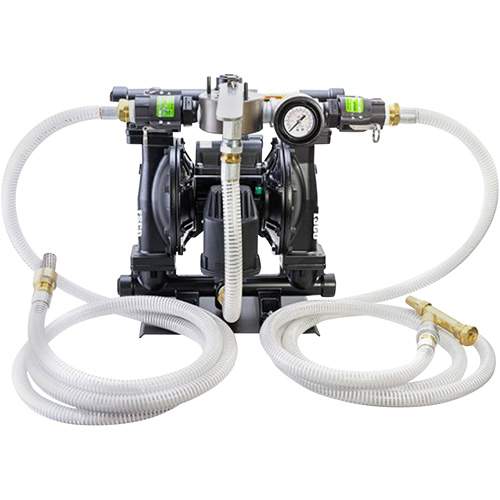

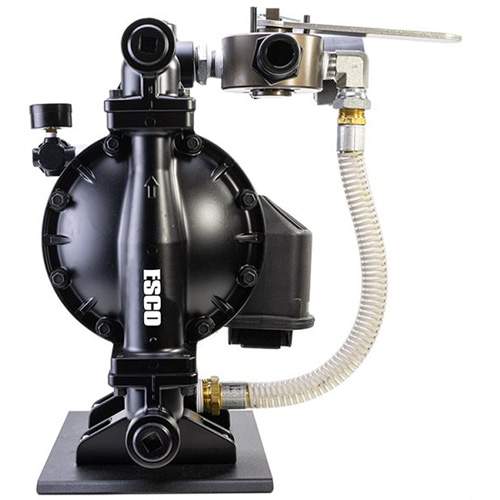

  • ESCO 10543 Calcium Chloride Liquid Transfer Pump

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,714.95

LOGIN for best possible pricing!

Ships in 3-6 days

Description

  • Portable and mountable liquid transfer pump designed to be used for transferring calcium chloride or other mediums into larger tire/wheel assemblies to help support ballast in the tire/wheel.
  • Heavy-Duty Lightweight construction ideal for commercial use.
  • Fast & Reliable transfer of calcium chloride or other mediums transfer up to 50 gallons per minute*

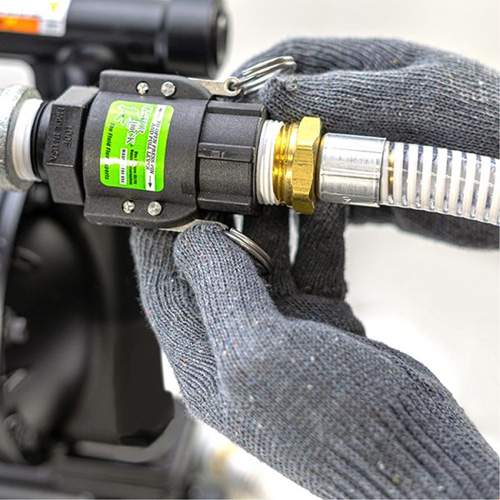

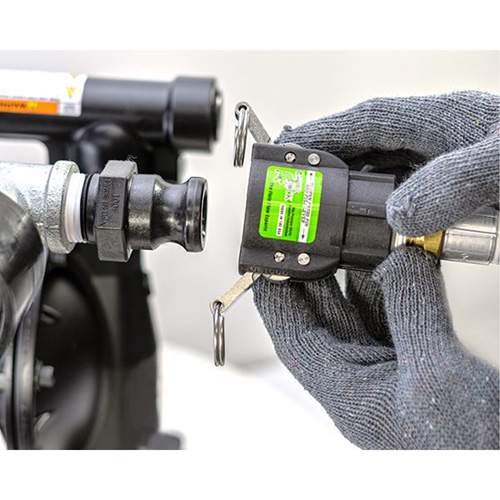

  • NEW Easy to use safety-secure quick connection "Cam-Lock" couplers on the hose ends for better transport, storage, and cleaning of hoses and unit Extends the life of the hoses, pump, and accessories

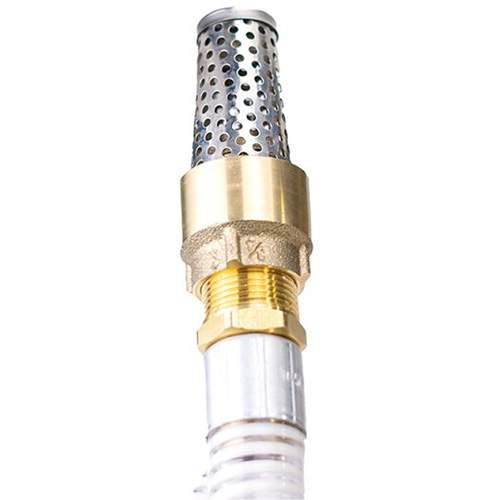

  • 1 in. hose intake
  • Pump 1 to 1 ratio designed to provide optimal output for evacuating and transferring liquids.
  • Fluid inlet and outlet ports: 1 in. NPT
  • Technical Specification:
    • Air Exhaust Port Size: 3/4 in.
    • Air Exhaust Port Thread Gender: Female
    • Air Exhaust Port Thread Type: NPT
    • Air Inlet Size: 1/2 in.
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT
    • Application: Industrial
    • Ball Material: Geolast®
    • Center Section Material: Aluminum
    • Compatible Material: Calcium Chloride, Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
    • Connection Type: Threaded
    • Diaphragm Compatible Material: Geolast®
    • Diaphragm Material: Geolast®
    • Fluid Inlet Size: 1 in.
    • Fluid Inlet Thread Gender: Female
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size: 1 in.
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Fluid Section Material: Aluminum
    • Manifold Configuration: Center Port, End Port
    • Manifold O-Ring Material: PTFE
    • Material: Aluminum
    • Maximum Air Consumption: 67 SCFM
    • Maximum Air Pressure: 0.86 MPa / 125 psi
    • Maximum Cycle Rate: 280 CPM
    • Maximum Flow Rate: 50 GPM
    • Maximum Fluid Pressure: 0.86 MPa / 125 psi
    • Maximum Operating Temperature: 150°F
    • Maximum Solid Size: 0.125 in.
    • Overall Height: 15.9 in.
    • Power Source: Air
    • Seat Material: Geolast®
    • Standards Met: ATEX, CE
    • Type: Pneumatic Diaphragm Pump
    • Weight: 23 lb
    • Wetted Material: Aluminum, Geolast, PTFE
