Electronic Specialties

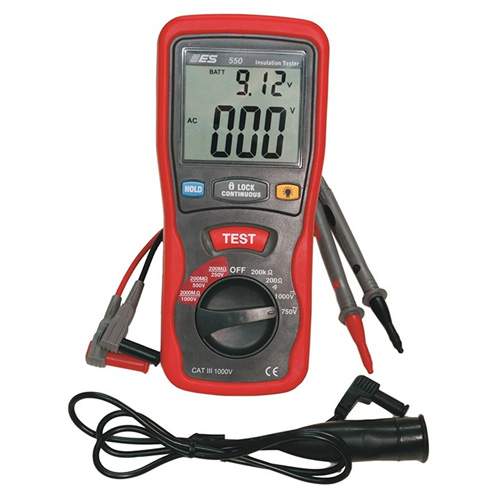

EV Insulation Tester

Part No.: 550

|

SKU: ESP550

Free U.S. Shipping
  • Electronic Specialties 550 EV Insulation Tester

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$270.06

Ships in 3-6 days

Description

  • 550 checks high voltage circuits on EVs and hybrids for leaks to ground.
  • Supplies 250V, 500V, and 1000V test voltages for complete insulation testing.
  • High voltage leakage cannot be easily tested without a high-voltage test source.
  • 550 is auto-ranging and measures up to 200 MegaOhm with a resolution of 1 K Ohm.

High Voltage Leak Sources:

  • Battery Pack
  • Power Inverter
  • DC-DC Converter
  • High Voltage AC Compressor
  • Power Steering Pump
  • Electric Motor
  • High Voltage Cables & Connectors

Features:

  • Meets IEC10101, CATIII 1000V
  • Large dual display with white LED backlighting
  • Test Hold function for easy operation
  • Over Range Indication
  • Low Battery indication
  • Includes 6 AA batteries, test leads, and blow mold case

Specifications:

Function Range Resolution
Voltage AC 0-750 V 1 V
Voltage DC 0-1000 V 1 V
Resistance 0-200, 2000 Ohm 0.1 Ohm
Insulation Resistance 200M, 2000M 100 KOhm

Test Voltage:

  • 250V: 200 MegaOhm
  • 500V: 200 MegaOhm
  • 1000V: 2000 MegaOhm

Continuity Test:

  • Audible beep 40 Ohm
  • Test current 200 mA

Dimensions:

  • Size (HxWxD): 200mm x 92mm x 50mm
  • Weight: 700g (with batteries)

*To do a leakage test: Follow the trouble code instructions to set up your meter and check specifications for the given vehicle.
