CTA

EZ Chamfer - Large

Part No.: 3840

|

SKU: CTA3840

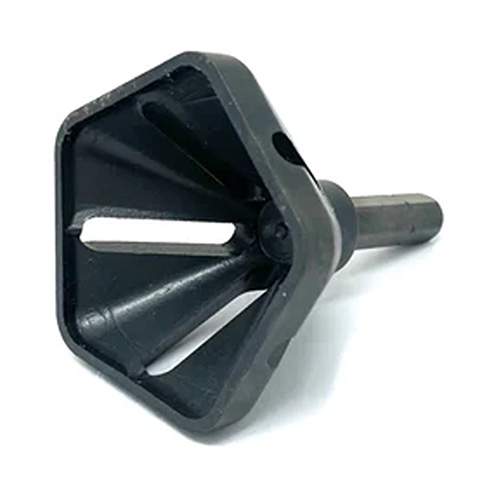

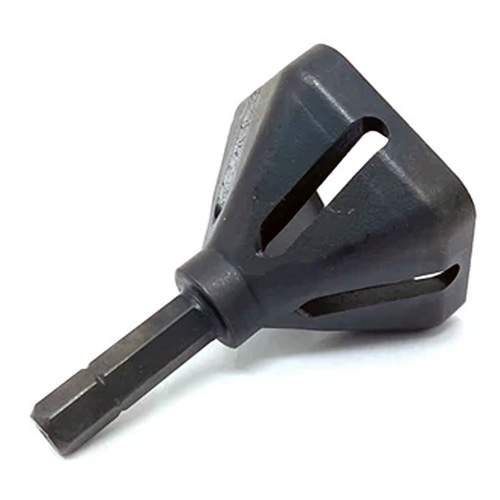

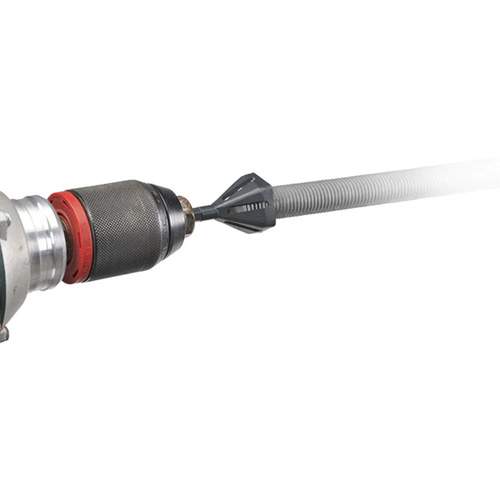

  • CTA 3840 EZ Chamfer - Large

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$97.57

Ships in 3-6 days

Description

  • 5-point design for quick and clean deburring
  • Range: 0.7" 1.5" (18-38mm)
  • Single M2-HSS construction - tungsten-molybdenum high-speed steel suitable for various applications
  • Efficiently removes burrs and ridges from bolts, pipe, threaded rod, bar, and dowels
  • Threads and burrs are sheared off, creating the perfect chamfer for starting a nut or threading die
  • Suitable for use on metals including:
    • Mild Steel - U.S. Grade 2 - Metric Grade 4.8
    • Hard Steel - U.S. Grade 5 - Metric Grade 8.8
    • Very Hard Steel - U.S. Grade 8 - Metric Grade 10.9
    • Stainless Steel - 300 Series
    • Super Hard Steel - U.S. Grade ASTM-A574 - Metric Grade 12.9
  • Attention: For best results, use a slow drill speed with medium pressure on most materials (harder materials will require a higher feed pressure)
  • On most applications, it is only necessary to chamfer the first 1 to 3 threads
  • Use at low speed: Maximum 600RPM
  • Impact drivers will reduce tool life
  • E-Z Chamfer (M2-HSS) recommended RPM according to size:
    • 18-24mm: 600RPM
    • 23-29mm: 400RPM
    • 30-38mm: 300RPM
