CPS PRODUCTS

Wireless Digital Vacuum Gauge

Part No.: VG200W

|

SKU: CPSVG200W

Free U.S. Shipping

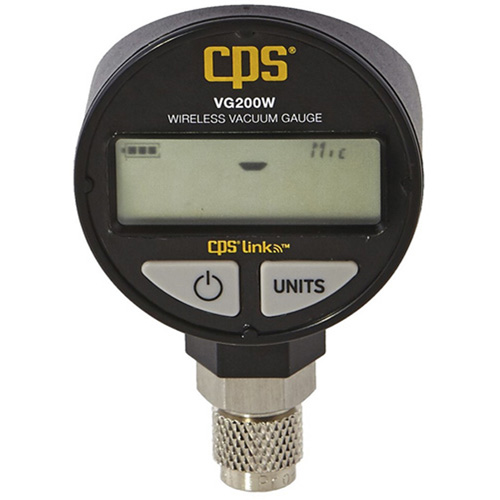

  • CPS PRODUCTS VG200W Wireless Digital Vacuum Gauge

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$229.75

Ships in 7-10 days

Description

Wireless Digital Vacuum Gauge

    Features

  • large, 5 digits LCD display with low battery indicator
  • easy 2 button control (on/off and units)
  • select from 4 different vacuum units at any time
  • atmospheric to 0-micron pressure range
  • auto-off after 10 minutes of no use
  • operates up to 20 continuous hours on one 9V alkaline battery (included)
  • compatible with all refrigerant gasses (including ammonia)
  • field cleanable sensor
  • includes stainless steel T connector, hanger hook, vinyl storage case and quick start guide all packed in a clear clamshell
  • designed and manufacturer in the USA with US and foreign components

    features when connected to the CPS Link App
  • choose from 8 different languages
  • log vacuum test data (viewable in real time graphs)
  • client lists - enter and retain client information
  • job checklist - create and retain job reminders
  • job tracker - create and retain records of services performed
  • geolocation - record where (global coordinates) and when (time stamp) job performed
  • set low and high alarms
  • cloud backup of data

    specifications:
  • gauge type: digital vacuum gauge (use as standalone gauge or pair with mobile device
  • sensor type: self heated thermistor bridge with integral temperature compensation
  • accuracy: up to 2000 microns = 10 percent of reading +/- 5 microns
  • resolution:
    • 2000 microns: 98000 - 76000
    • 1000 microns: 75000 - 50000
    • 500 microns: 49500 - 25000
    • 100 microns: 24900 - 10000
    • 50 microns: 9950 - 5000
    • 20 microns: 4980 - 1000
    • 10 microns: 990 - 100
    • 1 micron below: 100
  • display type: LCD, 5-digit
  • display auto-off: 10 minutes if no key pressed, no wireless connection, gauge not logging data
  • operating range: atmospheric pressure to 0 microns
  • selectable vacuum units: microns, millibar, inches Hg, torr
  • maximum working pressure: 450 PSIG MWP, 3000 PSIG burst (connect to system only at 0 PSIG)
  • mechanical connection: standard 1/4 inch female SAE refrigerant hose with core depressor
  • gauge adapter: 1/4 inch SAE male to 1/4 inch SAE male to 1/4 inch SAE female
  • refrigerant gas compatibility: all (including amonia)
  • approvals: FCC, CE, ICES
  • origin: designed and manufactured in the USA with US and globally sourced components
  • warranty: 1 year manufacturer warranty
