Coxreels

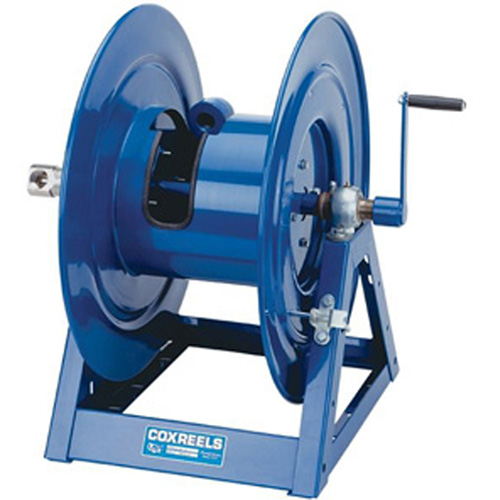

Large Capacity/Volume Hose Reel Without Hose

Part No.: 1185-2024

|

SKU: COX1185-2024

Shipping Calculated at Checkout
  • Coxreels 1185-2024 Large Capacity/Volume Hose Reel Without Hose

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$766.28

Ships in 11-14 days


Description

  • 1185 series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery
  • Coxreels exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap
  • The sturdy all welded (A) frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications
  • Swivel is bolted directly to the bearing housing
  • Low profile outlet riser & open hose slot for even hose wraps
  • Horizontal surface mount bearings instead of flange mounted
  • Brake assembly provides adj. friction to brake or lock the drum
  • One piece all welded steel (A) frame construction
  • Professional grade heavy duty steel construction
  • Durable proprietary CPC powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Made in the U.S.A. sold & supported worldwide

Specifications

I.D.

1-1/2"

O.D.

2-1/16"

Maximum Pressure

600 PSI

Swivel Seals

Nitrile

Inlet Swivel Assembly

1-1/2" F NPT 90 degrees

Outlet Riser

1-1/2" F NPT

Weight

94 lbs.

Hose Capacity

100'

Material

Steel

Manufacturer's Warranty

  • 2 Years limited
