BVA

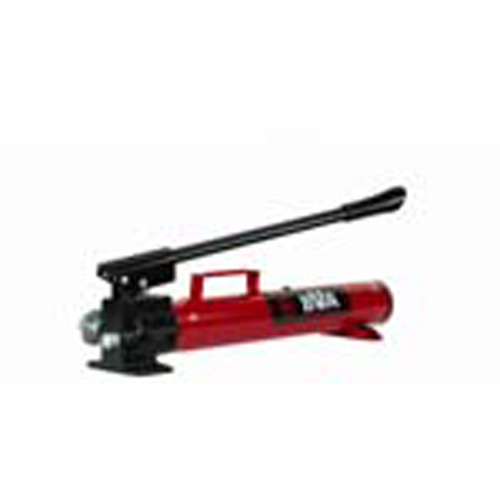

Single Speed HD Hand Pump With 67 Cu In Reservoir

Part No.: P1201S

|

SKU: BVAP1201S

Free U.S. Shipping
  • BVA P1201S Single Speed HD Hand Pump With 67 Cu In Reservoir

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$534.15

LOGIN for best possible pricing!

Ships in 7-10 days

Description

Hand Pump

    Features


  • P350, P1000 and P2001 feature 2 speed operation
  • Pressure relief valve for overload protection
  • Load release valve for single acting cylinder usage
  • Large oil capacities to power a wide range of cylinders and tools
  • P350 and P1000 are constructed of high strength lightweight aluminum alloy for easy handling and corrosion resistance
  • All hand pumps function in horizontal positions and will also function in some vertical positions
  • Maximum working pressure: 10,000 psi/700 bar
  • Accessories: cylinder set, fitting, gauge, hose
    specifications:
  • model: p1201s
  • used with cylinder: single acting
  • pump type: single speed
  • usable oil capacity (cubed inches): 67.0
  • pressure rating second stage (psi): 10,000
  • oil displacement per stroke second stage (cubed inches): 0.13
  • maximum operating force (lbs): 132
  • piston stroke (inches): 0.82
  • oil outlet port: 3/8 inch - 18NPTF
  • weight (lbs): 20
  • dimension a (inches): 19.75
  • dimension b (inches): 6.64
  • dimension c (inches): 21.95
  • dimension d (inches): 16.63
  • dimension e (inches): 2.36
  • dimension f (inches): 1.73
  • dimension g (inches): 20.71
  • dimension h (inches): 4.72
  • dimension j (inches): 3.74
  • dimension k (inches): 18.27
