AutoMeter

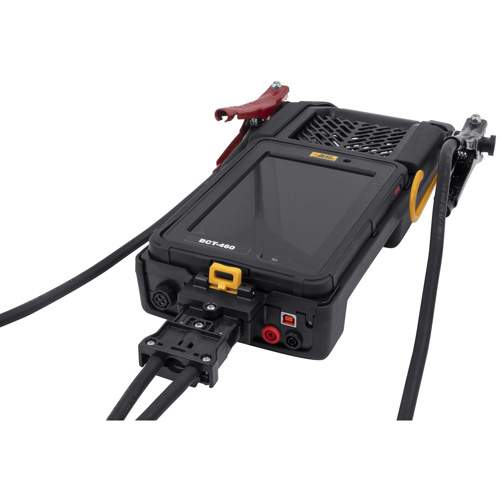

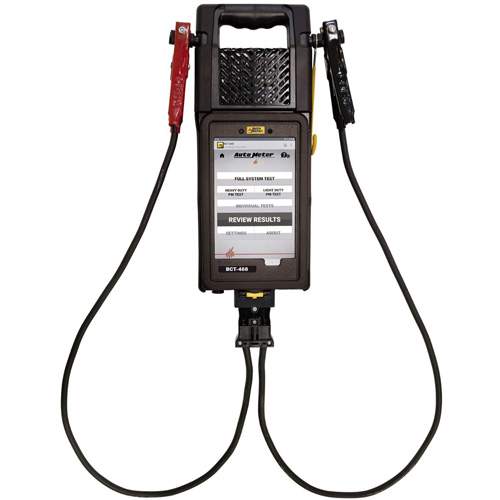

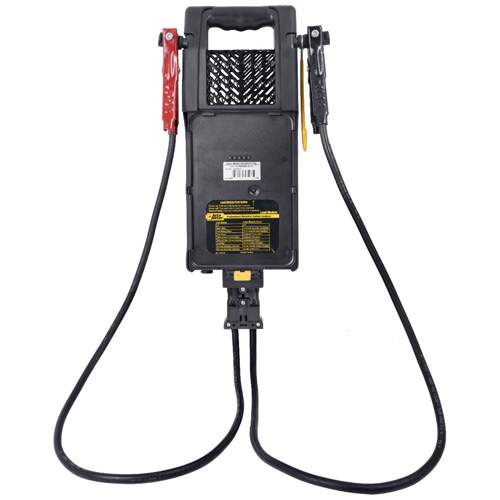

HD Truck Wireless Battery & System Tester, Tablet-Based

Part No.: BCT-468

|

SKU: AUTBCT-468

Free U.S. Shipping
  • AutoMeter BCT-468 HD Truck Wireless Battery & System Tester, Tablet-Based

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$3,408.19

Ships in 3-6 days

Description

  • Innovative tablet-based truck electrical system analyzer with wireless remote load module
    • Includes a ruggedized control module with an 8", wide viewing angle touch screen user interface. Load module lithium-ion battery is both rechargeable and replaceable
    • True load test for 6 and 12 volt batteries (including AGM)
    • Performs battery pack testing (up to 4 batteries)
    • Tests 12 and 24 volt starting and charging systems
    • Tests 6 and 12 volt batteries rated between 100-1600 CCA
    • Provides a significant load during testing for incredible accuracy, even on partially discharged batteries
    • Provides Quick PM tests for battery pack, starter, alternator (up to 450 Amp output), and cable voltage drop tests
    • Provides full electrical system test similar to the RP-129B
    • Delivers a clear snapshot of cranking RPM for enhanced diagnostics (patent pending)
    • Includes automatic voltage drop testing on starter, alternator, and lift-gate cables and connectors
    • Includes built-in non-contact IR battery temperature measurement. Also includes port for optional inductive current probe
    • Wi-Fi enabled for automatic real-time data collection and customer communications
    • Performs lift gate testing with separately sold adapters
    • Field replaceable, plug and play leads for easy tool maintenance
    • Step-by-step graphical troubleshooting instructions guide user through the testing process and provide clear next-step advice
  • Operation
    • With the use of a microprocessor, a substantial true load, and AutoMeter's patented digital pulse load testing protocol, the BCT-468 accurately measures the battery's capacity and recovery for a comprehensive state of health assessment. Capable of detecting bad cells and "near end of life" conditions
    • The BCT-468 applies a true load to the battery in order to simulate real world operating conditions
    • Charging system test results measure alternator current output, voltage regulation, diode ripple, and also starter cranking RPM (patent pending)
