Waekon

Auto Wave Automotive Voltage / Signal Waveform Viewer

Part No.: 75000

|

SKU: WAE75000

Free U.S. Shipping

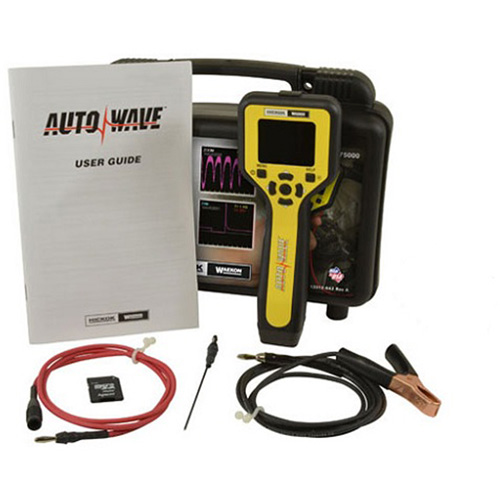

  • Waekon 75000 Auto Wave Automotive Voltage / Signal Waveform Viewer

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$387.08

Ships in 7-10 days

Description

Auto Wave Automotive Voltage / Signal Waveform Viewer

Scope Out Voltage Without the Scope!

Use Auto Wave to quickly and easily verify that signals and voltages are present in waveform format using a voltage/time scale without the need for a scope and with more detail than a DVOM

View signals on ignition primary, fuel injectors, MAF, O2, TPS, crank and cam, PWM components and much more. Purchase the optional SIP Adapter (75300) and also view Secondary Ignition wires and COP Ignition systems waveforms.
    features and benefits:
  • Auto Set Feature — Automatically sets time and voltage scale adjustment for the viewed signal or voltage
  • Zoom and Pan — Adjust the view of the signal for a more detailed wave form
  • 4 GB Micro SD Card — Save waveform snapshots for later review on the tool or a PC
  • Accurate Readings — Sample rate up to one million samples / second
  • Color LCD Display — Easy viewing of the waveform time and voltage scale

    • specifications:
  • Please refer to the User Guide for a full list of specifications
  • Voltage Ranges: 150V, 100V, 50V, 20V, 10V, 5V, 2V, 1V
  • Sample Rate: 1 Ms/Sec at 100uS / Division
  • Voltage Input Range: + or - 150V (approximately 170V P/P viewable on LCD
  • Volt Meter : + or - 150V DC
  • Accuracy: + or -2 percent FS (per range)
  • Storage: up to 9999 waves on SD card

    • kit contents:
  • Main Unit
  • 9 Volt Battery
  • Storage Case
  • 4 inch Signal Probe
  • 4GB SD Card and PC Adapter
  • 3 foot Signal Extender Cable
  • 5 foot Ground Cable
