Sheffield Research

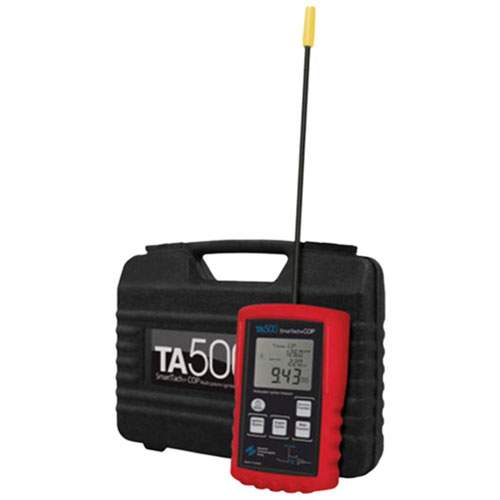

Smartach+Cop Multisystem Engine Analyzer

Part No.: TA500

|

SKU: SHETA500

Free U.S. Shipping

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$173.26

Ships in 7-10 days

ToolDiscounter.com Ratings on Shopper Approved

Customer Reviews

Description

SmarTach+COP Multisystem Engine Analyzer

The TA500's unique and proprietary technology allows the user to perform quick and reliable diagnostics of non-starts, misfires, fouled up or damaged spark plugs and/or spark plug wires, by comparing digital read-outs of the spark plug voltage and spark burn time between cylinders on engines using Coil on Plug, Coil near Plug, conventional distributor/ignition coil, DIS (Distributor-less) or waste spark and magneto technologies.
    Features
  • Simple to use, the TA500 requires no special adapters, cables or a scope
  • Equipped with a large digital display that shows spark plug voltage, spark burn time, RPM, as well as Min/Max readings in real time.
    Includes:
  • TA500
  • Protective rubber holster
  • Hard padded case for carrying and storage
  • 9 Volt alkaline battery
  • User's Manual
    Technical Specifications:
  • Display: Large 4-1/2 Digits LCD + 2 x 3-1/2 + 0 Digits secondary
  • displays (for Maximum, Minimum and other functions)
  • Tachometer Range: 200 to 19999 RPM
  • # of Cylinders: 1, 2, 3, 4, 5, 6, 8, 10 and 12
  • Cycles: 2 and 4 Cycles, and DIS
  • Tachometer accuracy: ± 0.05% + 1 LSB
  • Response time: 0.5 Seconds
  • Ignition peak voltage range: 0 to 49.9 KVolt
  • Antenna: Flexible with swivel capacitive sensor pick up
  • Secondary ignition pick up: Capacitive sensor
  • Spark Ignition System: Coil on Plug, Coil near Plug, Distributor, Magneto and D.I.S. (Distributor-less or waste spark ignition system)
  • Power Source: One standard 9 Volt alkaline battery type NEDA 1604 IEC 6F 22
  • Battery life: Approx. 25 hours of operation
  • Power Saving: Auto power off after approximately 1 min. of inactivity
  • Physical dimensions : 6 inch (H) x 4 inch (W)x 1.5 inch (D) (158 x 100 X 37 mm) - including holster but excluding antenna
  • Weight: Approximately 11.8 oz ( 335 g) Including battery
  • Maximum spark plug wire voltage (Through capacitive pickup only): 49.9 KVolt
  • Weight: 3 lb
