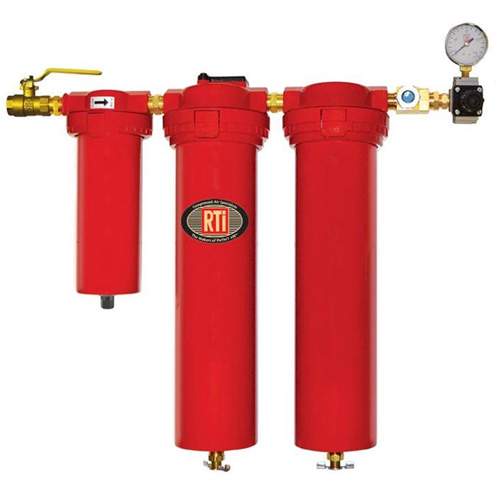

Eliminator® II Desiccant Dryer

Features & Benefits

• Designed to provide continuous dry, oil-free air to -40ºF dew point
• 3 in 1: Activated carbon pre-filter for superior oil vapor removal and built-in final filter with contained desiccant cartridge, no desiccant dust migration
• Largest 0.01 micron coalescer on the market
• Tool-less spin on/spin off elements for easy maintenance, comes with two (2) PB-004 brackets for easy mounting
• Inverse Flow® Technology, low pressure drop design
• High flow ½" NPT relieving regulator
• Automatic drain on first stage, manual petcock drains on second and third stages

Specifications

• Dryer Design: Manual, Desiccant
• Recommended Temp: 100°F
• Maximum Pressure: 150 PSIG
• Dryer Capacity: -40°F
• Filter Capacity: 0.01 micron and larger
• Activated Carbon Oil Absorption to 0.003 ppm
• Flow Capacity: 30 SCFM at 100 psi
• Differential Pressure: <5.0 PSID at rated flow
• Height: 17.0"
• Width: 16.0"
• Depth: 4.75"
• Weight: 20 lbs.
