Palmgren

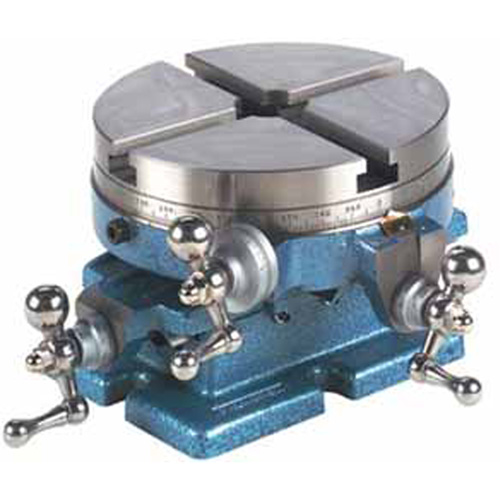

Cross Slide Rotary Table 10 Inch Diameter

Part No.: 34102

|

SKU: PAL34102

Shipping Calculated at Checkout
  • Palmgren 34102 Cross Slide Rotary Table 10 Inch Diameter

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,332.25

Ships in 7-10 days

Description

Cross Slide Rotary Table 10 inch Diameter
    Palmgren rotary tables accurately position work on the X and Y axes, as well as 360 degree base rotation. With these versatile tables, it is possible to do hundreds of jobs that were never before possible using a standard machine. The table may be used to position or to actively feed under the machine spindle. Tops are ground to 0.001 inch total indicator reading. heavy handles permit smooth movement and do not extend below the base, eliminating interference with the machine table. Cross slide travel is 4 inches.
    Specifications:
  • Table Diameter (In.): 10
  • Height Overall (In.): 5-3/8
  • Top Grad. (In.): 360 degree
  • Base Keyway (In.): 5/8
  • Gear Ratio: 40:1
  • Table T-slots (In.): 5/8
  • Weight (lbs.): 52
    1 year warranty on labor, LIFETIME warranty on parts!
