OTC

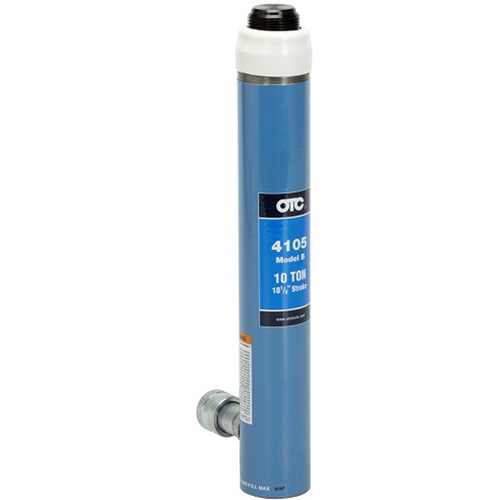

Ram, Single-Acting, Spring Return, 10 Ton

Part No.: 4105A

|

SKU: OTC4105A

Free U.S. Shipping

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$559.50

Ships in 5-8 weeks

ToolDiscounter.com Ratings on Shopper Approved

Customer Reviews

Description

Single-Acting, Spring Return Rams
  • For maximum working pressures up to 10,000 PSI
  • 2 to 1 safety factor on material yield.
  • Designed and tested to meet ANSI B30.1.
  • Compact ram require a minimum of mounting space.
  • Full piston return.
  • Additional bearing surface has been designed into these units, to effectively resists the punishing stress exerted by off-center loads.
  • Capacity in tons: 10
  • Stroke: 10 1/8 inches
  • Oil capacity: 22.9 cubic inches
  • Effective ram area: 2.236 square inches
  • Tons at 10,000 PSI: 11.2
  • Spring return
  • Height collapsed: 15 1/2 inches
  • Height extended: 25 7/8 inches
  • Piston Protrusion at collapsed height: 1 1/16 inch
  • Piston thread: 1 1/4 NPT
  • No collar thread, Straight: 2 1/4 inches-14
  • Internal base thread NPSM: 1 1/4 inches-11 1/2
  • Weight: 14 pounds, 13 ounces Single-Acting, Spring Return Rams
  • For maximum working pressures up to 10,000 PSI
  • 2 to 1 safety factor on material yield.
  • Designed and tested to meet ANSI B30.1.
  • Compact ram require a minimum of mounting space.
  • Full piston return.
  • Additional bearing surface has been designed into these units, to effectively resists the punishing stress exerted by off-center loads.
  • Capacity in tons: 10
  • Stroke: 10 1/8 inches
  • Oil capacity: 22.9 cubic inches
  • Effective ram area: 2.236 square inches
  • Tons at 10,000 PSI: 11.2
  • Spring return
  • Height collapsed: 15 1/2 inches
  • Height extended: 25 7/8 inches
  • Piston Protrusion at collapsed height: 1 1/16 inch
  • Piston thread: 1 1/4 NPT
  • No collar thread, Straight: 2 1/4 inches-14
  • Internal base thread NPSM: 1 1/4 inches-11 1/2
  • Weight: 14 pounds, 13 ounces
