OTC

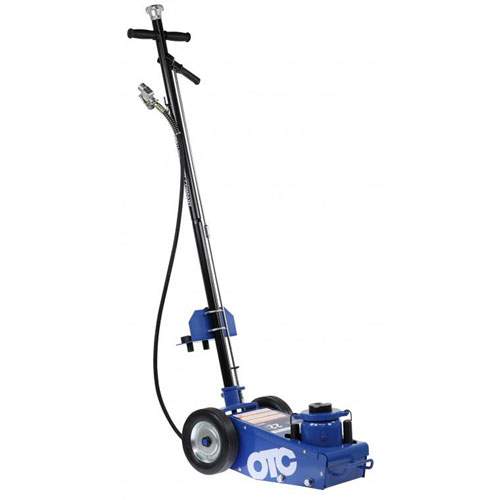

22-Ton Axle Jack

Part No.: UA22

|

SKU: OTCUA22

Free U.S. Shipping
  • OTC UA22 22-Ton Axle Jack

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,200.85

Ships in 2-3 weeks

Description

22-Ton Axle Jack

    Features

  • self retracting, spring return feature with long 49-1/2 inch t-handle lets you easily position the jack under vehicles with long overhangs
  • one pull of the handle activates the self-retracting 22 ton capacity ram without having to crawl underneath the vehicle
  • large rubber-tired steel wheels for maneuverability and movement on most types of terrain
  • three included saddle attachments for multiple height adjustments based on vehicle being lifted
  • ideal for safely lifting heavy duty vehicles
    specifications:
  • capacity: 22 ton
  • air pressure: 90-145 psi
  • lifting range: 8.27 to 20-2/3 inch using longest saddle
  • reach: 69.87 inches
  • saddle: 3 inch diameter, round with center notch
    • includes 3 saddle lengths
      • max height using 3/4 inch saddle: 17-3/4 inch
      • max height using 1-15/16 inch saddle: 18-15/16 inch
      • max height using 3-7/8 inch saddle: 20-2/3 inch
  • frame height: 8.27 inches
  • handle length: 47.24 inch t-handle with lowering lever and air-chuck hose
  • footprint: 22.63 x 11.73 inch
  • wheels: 2 fixed, 7.88 inch rubberized steel
  • meets all 5 ASME PASE-2019 safety standards for service jacks
  • limited lifetime warranty
