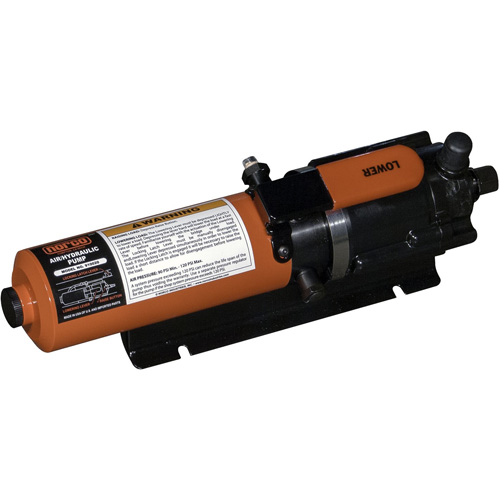

Air/Hydraulic Pump, Hand Activated - 3,250 PSI

Intended use: For automotive/truck, industrial and construction jobs. The added convenience of an air motor reduces pumping time and effort to activate cylinders. The pump operates in all positions for increased versatility in use and mounting.

Features

• Steel reservoir body, a manually activated push button for pumping and a lever for release of load.
• Designed to utilize exhaust air to help power the pump, requiring only 80 psi air pressure to develop 10,000 psi hydraulic pressure.
• Air exhaust muffler for quieter operation.
• Air and oil inlet filters for reduced risk of damage from contamination.
• Designed with durable light weight, corrosion resistant plastics.
• Designed to be used with a single-acting cylinder.
• Internal pressure relief valve for overload protection.

Specifications:
• Hydraulic pressure rating: 3,250 psi
• Usable oil capacity: 36 cubic inches
• Output flow rate (cubic inches per minute): 40 no load, 8 load
• Air pressure range: 60-120 psi
• Air consumption: 9 standard cubic feet/minute
• Sound level: 85 decibels
• Dimensions: 15.5 inches long, 4.5 inches wide, 5 inches high
• Weight: 9 lbs
