3-Ton Capacity Air/Hydraulic Pump Operated Rolling Lift Bridge

Part No.: 79335

|

SKU: NOR79335

Shipping Calculated at Checkout

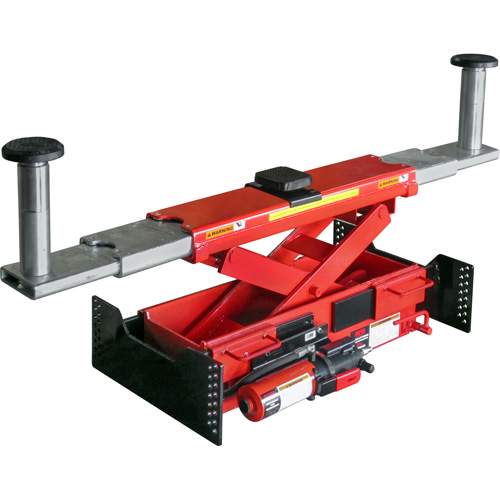

  • NorcoLifting 79335 3-Ton Capacity Air/Hydraulic Pump Operated Rolling Lift Bridge

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$3,591.19

Ships in 3-6 days

Description

3-Ton Capacity Air/Hydraulic Pump Operated Rolling Lift Bridge

    Features

  • Push button air/hydraulic pump provides safe, quick lifting up to 9" which allows for a maximum lift height of 18-3/8" when using both adapters and extension screw extended
  • The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 62-13/16"
  • Universal mounting brackets adjust to a lift rail range of 32" to 46-1/2"
  • Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for smooth maneuverability of bridge on lift rails
  • These brackets are sold separately
  • Mechanical stop prevents accidental lowering of bridge
  • Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop
  • Equipped with rubber faced saddles for differential lifting

    • Specifications:
  • Stroke: 9"
  • Length: 34.6875"
  • Width: 21.5"
  • Height: 9.375"
  • Included Lift Adapters: (2) 3-1/2" Adapters, (2) 5" Adapters, & (2) Padded Saddles with Extension Screws
