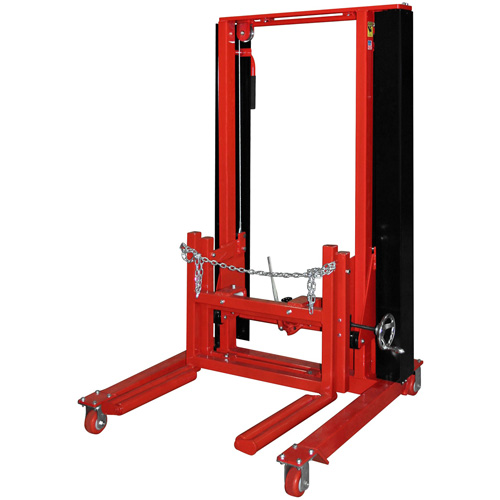

1/2 Ton Capacity High Lift Wheel Dolly

Intended use: This uniquely crafted wheel lift is designed for the removal and installation of single, tandem, and duplex tires and wheels which are mounted on trucks that are supported above ground level.

Features

• The unique, open-chassis design allows for much easier alignment than with the center post designs of our competition.
• Air-operated pump allows the unit to life the load effortlessly.
• Heavy duty lift arms made with ball bearing conveyor rollers which allow easy rotation of wheels for alignment with bolt pattern.
• 39-1/2 inch lift range
• 7 inches of side to side lift arm adjustment allows for the easy alignment of the rin's lug holes with the wheel.
• 1,000 lb capacity
• A hydraulic jack provides tilt to the lift arms for easy alignment.
• Safety chain provided to secure tires and wheels to the dolly.
• Maneuverability is made easy by means of two rear mounted ball bearing swivel casters. The caster wheels include a locking mechanism which can prevent the dolly from moving.

Specifications:
• Capacity: 1/2 ton
• Lift heights: 2.125 inches low, 39.5 inches high
• Lift arms: 30.875 inches wide, 22.125 inches long, -2 to 30 degrees tilt angle
• Side to side adjustment: 2.5 inches left, 4.5 inches right
• Overall dimensions: 49.5625 inches long, 44.625 inches wide, 69.6875 inches high
• Support leg clearance: 6.25 inches
• Shipping weight: 476 lbs
