Mastercool

Electronic Leak Detector Combo Kit

Part No.: 55900-COMBOKIT

|

SKU: MAS55900-COMBOKIT

Free U.S. Shipping

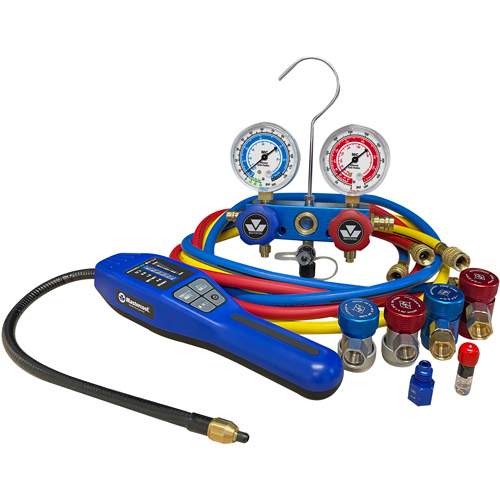

  • Mastercool 55900-COMBOKIT Electronic Leak Detector Combo Kit

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$374.33

Ships in 3-6 days

Description

  • Includes: 55900 Instella Sense II Refrigerant Leak Detector with (2) "C" Batteries, Leak Test Vial & Replacement Filters, 89661-AYF R1234YF/R134A Aluminum Manifold Gauge Set with 2 1/2" gauges, 3-60" R134a standard hoses, R134a manual couplers (82834, 82934), R1234yf couplers (83834, 83934), 1/2" acme-m x 1/2" acme-f LH thread adapter (83633), (2) 12 mm-m x 14 mm-f R1234yf adapters (83735)

      • 55900 FEATURES/SPECIFICATIONS

      • Sensing Element: Heated Tin Oxide
      • Sensor Life: 2000 hours
      • Refrigerants: Detects all refrigerants (HFC, CFC, HCFC, and blends)
      • Sensitivity Levels:
        • HIGH: 0.15 oz/yr (4 g/yr)
        • MEDIUM: 0.25 oz/yr (7 g/yr)
        • LOW: 0.50 oz/yr (14 g/yr)
      • Response Time: less than 1 second
      • Battery: 2 "C" Alkaline 6000 mAh batteries
      • Operating Temperature Range: 0F to 120F
      • Probe:
        • Intelligent tip, with environment sensing element to eliminate the potential of false alarms
        • Flexible 15.5 inch probe length for difficult to reach locations
      • Display:
        • Six vertical LED's enabled selectively (red, yellow or green) to display the following information to the user such as:
        • The relative signal level of the detected leak
        • The selected sensitivity range (low/medium or high) of the unit
        • Diagnostic information: low battery, interference/wait, contaminated atmosphere readiness of the unit or fault conditions of the unit
      • Keypad Controls:
        • ON/OFF button (push-on/push-off)
        • Volume/Mute button (high, low or mute)
        • Sensitivity button for High, Medium and Low sensitivity level selection
        • Peak button when multiple leaks are suspected (push enable/disable)

      89661-AYF FEATURES/SPECIFICATIONS

      • Professional extruded aluminum block
      • 2 1/2" silicone dampened, recalibrateable gauges
      • Free-floating piston type valves reduce o-ring wear
      • Extra access port for vacuum line
      • Extra large sight glass for visual refrigerant check
      • Large easy-to-grip knobs
      • R1234yf high and low side couplers with extended disconnect protection sleeve meets SAE J639 & J2888
      • R134a high and low side manual couplers meet SAE, UL and EPA requirements for containment of refrigerant
      • 1/2" acme-m x 1/2" acme-f LH thread adapter
      • (2) 12 mm-m x 14 mm-F R1234yf adapters
      • Set of 3 R134a standard hoses
