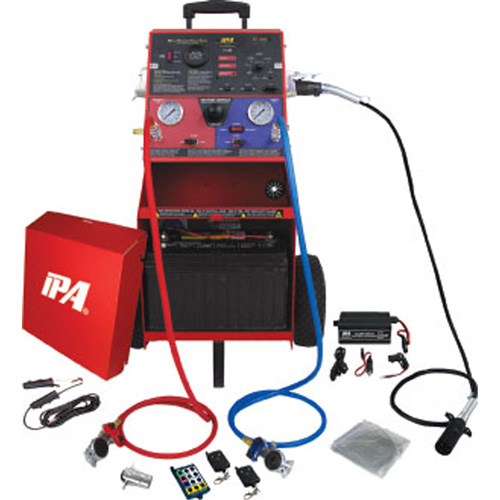

IPA 9008-DL Super MUTT Deluxe with DL Accessory Pack
Quickly troubleshoot and repair all trailer light and air brake systems
The Super MUTT® places a load on the trailer's electrical circuits to identify wiring problems while providing remote control operation over both Air Brakes and Lights.
Built to facilitate a one-man testing operation, the Super MUTT® reduces guesswork and inspection time to prevent failures that lead to expensive road calls and citations.
The remote control allows for repetitive air brake actuation at each axle to reveal developing problems often missed by normal testing procedures.
Features
-
Air Brake Testing
- Operate Air Brakes by Remote Control (100 foot operating range)
- Real time, repetitive brake activation to find developing problems
- Perform leak down test on service and emergency lines
- Adjust slackers and measure pushrods using remote control
- Verify leaking servo cans
-
Electrical Testing
- Power lights individually, all at once, via auto scan or remote control
- Ground failure detection: differentiates between wire and chassis ground
- Identifies open circuits and cross-wired circuits
- Pulses power to shorted and overloaded circuits (patented Pulsar® technology)
- ABS fault codes via Aux and brake circuit activation (ie. Wabco/Bendix Tab-6 systems)
- Amperage readout (0-20 amps)
- Audible and visual alerts
-
Additional Features
- 7-way "pigtail" Cable Testing
- Sync Multiple (24) Remotes to one unit
- 10" Pneumatic Tires
- Telescoping Handle
- Made in USA
Specifications
- Power: 12 volts DC
- Air Input: 120 PSI Shop Air
- Power Input: Group 31 (or similar battery) or external 12 volt power source
- Output: 20 amps @ 12 volts DC
- Connection Type: 7-Way Round Pin
- Controls: Manual, Remote, Automatic
- Materials: Steel construction
- Weight: 40 lbs
- Dimensions: W: 14" x H: 28"
Accessories
- 3 Remote Controls
- 5 ft. 7-way cable
- Chassis ground cable
- 6 in. glad hands
- Battery Charger
- Face Shield
- Rain cover
