Hein Werner

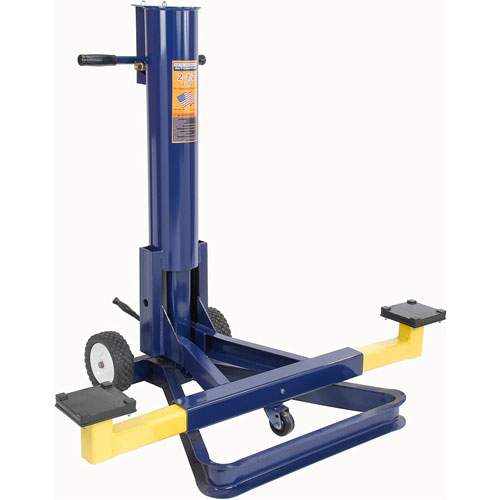

2 1/2 Ton Air Operated End Lift

Part No.: HW93696A

|

SKU: HEIHW93696A

Shipping Calculated at Checkout
  • Hein Werner HW93696A 2 1/2 Ton Air Operated End Lift

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,783.83

Ships in 2-3 weeks

Description

2 1/2 Ton Air Operated End Lift

    Features

  • lifting the front or rear end of cars, vans, and light trucks by the bumper
  • air operation with two-stage air valve
  • hydraulic damper and safety locks
  • four-point lifting saddle with ribbed rubber pads and slotted bumper fingers
  • saddle height and width location adjustment for ease of pick up
  • a quick yet effortless lift saves time and reduces mechanic fatigue
  • three-way heavy duty brass air valve provides fine control when lifting and lowering a vehicle
  • safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of load
  • front swivel caster wheel and two 8 inch diameter rear tires provide easy maneuvering
  • adjustable lifting arm can be extended to desired position
    specifications:
  • capacity: 2.5 ton
  • minimum height: 8 inches
  • maximum height: 35 3/8 inches
  • power raise: 24 3/4 inches
  • saddle spread: 23 1/4 to 41 1/4 inches
  • distance from front of air cyl to lifting saddle: 19 inches
  • minimum psi for rated load: 200 psi
  • weight: 210 lbs
