Fluke

True Rms Digital Multimeter With Backlight

Part No.: 177

|

SKU: FLU177

Free U.S. Shipping

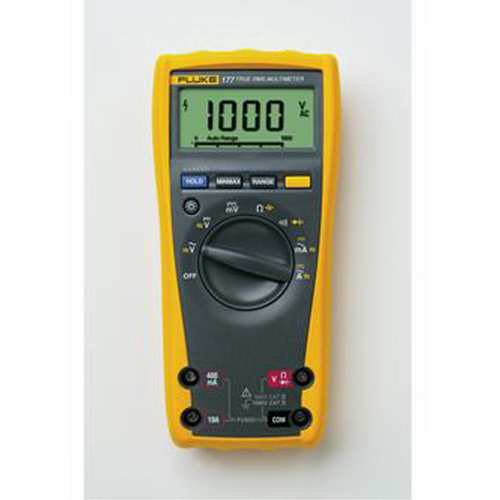

  • Fluke 177 True Rms Digital Multimeter With Backlight

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$439.18

LOGIN for best possible pricing!

Ships in 5-8 weeks

Description

Digital multimeter

    Features

  • IEC 1010 CAT IV 600V, CAT III 1000V safety rating.
  • 6000 count display provides improved resolution.

  • True-rms ac voltage and current for accurate readings on all waveforms.

  • Min/Max/Average recording.

  • Frequency, capacitance & resistance capabilities.

  • Backlight to illuminate the screen in dark workspaces.

  • Easy access battery door to change the battery without breaking the calibration seal.

  • Drop protected to 1 meter.

  • Overmolded case features integrated probe holders.

  • Compatible with ToolPak meter hanging kit.

  • Lifetime Warranty.

    AC Amps:
  • Range: 3 mA to 10.00A (20A overload for 30 seconds)
  • Accuracy: ± (1.5% of reading plus 3 counts)
  • Crest Factor: £3
  • AC Response: 45 Hz to 1 kHz

    DC Amps:
  • Range: 0.01mA to 10.00A (20A overload for 30 seconds)
  • Accuracy: ± (1.0% of reading plus 3 counts)

    AC Volts:
  • Range: 30 mV to 1000V
  • Accuracy: 45 Hz to 500 Hz 1% of rdg + 3 counts, 500 Hz to 1 kHz 2% of rdg + 3 counts
  • AC Response: 45 Hz to 1 kHz

    DC Volts:
  • Range: 0.1 mV to 1000V
  • Accuracy: ± (0.09% of reading plus 2 counts)

    Ohms ("):
  • Range: 0.1 to 50.00M"
  • Best Accuracy: ± (0.9% of reading plus 1 count)

    Capacitance:
  • Range: 1 nF to 9999 µF
  • Best Accuracy: ± (1.2% of reading plus 2 counts)

    Continuity:
  • Beeper guaranteed on <25W, guaranteed off> 250W; detects opens or shorts of 250 µs or longer

    HZ:
  • Range: Voltage Input: 2 Hz to 100 kHz
  • Current Input: 2 Hz to 30 kHz
  • Accuracy: ± (0.1% of reading plus 1 count)
