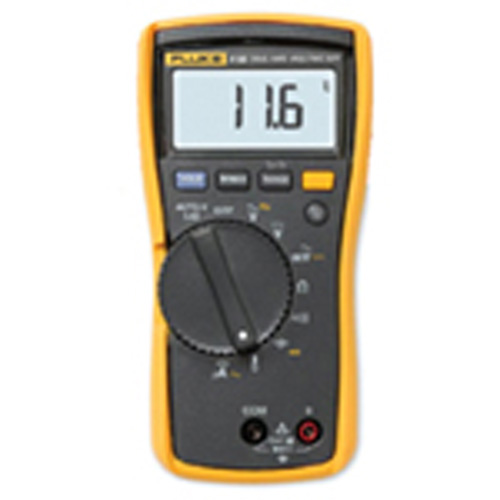

HVAC Multimeter with Temperature and Microamps
The Fluke 116 has the functions you need to quickly troubleshoot problems with HVAC equipment and flame sensors. Built-in thermometer gives you versatility to perform a wide range of HVAC/R tests.
examples:
- Measure superheat and subcooling: Measure key temperatures and pressures. Use the Fluke 116 with a Fluke velcro pipeclamp (included in kit) and the PV350 (optional) pressure module to determine superheat and subcooling values. Detect problems like a clogged filter drier, undercharge, overcharge, faulty metering device or improper airflow, liquid line restriction or insufficient water flow.
- Troubleshoot the defrost control on a heat pump: Check the temperature of the air coil or confirm when the defrost cycle starts and ends
- Take temperature surveys: Test out compressor heads, oil sumps, evaporator coils and suction lines, plus discharge lines, condenser coils and the liquid line
- Microamps measurement for testing flame sensors: When a furnace flame will not stay lit, use the Fluke 116 microamps measurement to troubleshoot the flame rod circuit.
- LoZ reduces chance of false readings due to ghost voltage. (See Fluke 117 for more details about the LoZ function.)
features:
- Large white LED backlight for excellent visibility in poorly lit areas
- Min/Max/ Average to record signal fluctuations
- Compact ergonomic design for one-handed operation
- CAT III 600 V safety rated
general specifications:
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. The accuracy specifications take the form of: ± ( [ % of reading ] + [ counts ] )
- Maximum voltage between any terminal and earth ground: 600 V
- Surge protection 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
- Fuse for A input 11 A, 1000 V FAST Fuse (Fluke PN 803293)
- Display Digital: 6,000 counts, updates 4/sec
- Bar graph 33 segments, updates 32/sec
- Operating temperature -10 °C to + 50 °C
- Storage temperature -40 °C to + 60 °C
- Battery 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
- Battery life 400 hours typical, N10140 without backlight
included:
- 4 mm silicone test lead set
- 80BK Integrated Temperature probe
- Holster
- Installed 9 V battery
- User manual
