ESCO

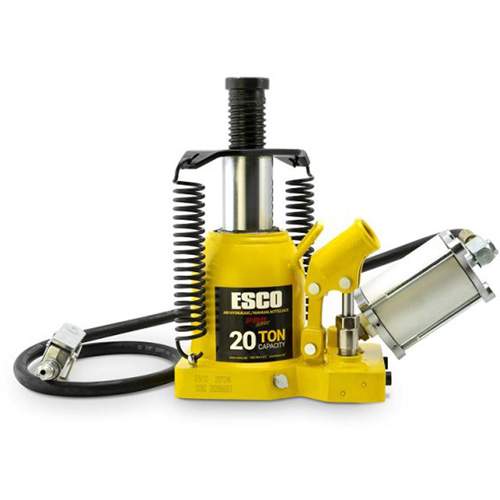

Pro Series 20 Ton "Shorty" Air Hydraulic Bottle Jack

Part No.: 10382

|

SKU: ESC10382

Free U.S. Shipping
  • ESCO 10382 Pro Series 20 Ton "Shorty" Air Hydraulic Bottle Jack

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$364.95

LOGIN for best possible pricing!

Ships in 3-6 days

Description

  • With lifting capacities from 12 Ton and up to 30 Tons, there is a Jack that will fit any service technician's needs.
  • Each jack is designed uniquely for specific applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
  • Fully welded cylinder and frame provide superior strength and extended service life.
  • Extra thick jack base provides exceptional support and stability in severe conditions.
  • Super Low Profile "Shorty" Design Great for low clearance application.
  • The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
  • Chrome-plated piston for extra rust and corrosion resistance.
  • Fitted with a safety valve to prevent overloading.
  • Double spring design for controlled and safe descent while releasing pressure from the cylinder.
  • Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights.

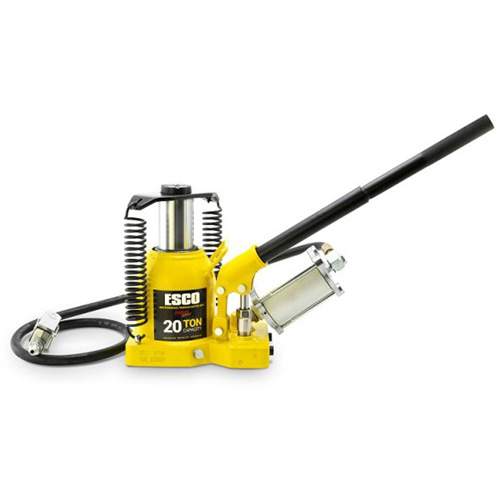

  • Designed to be operated using air or manually with included two-piece lifting/lowering handle.
  • Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising the jack to load.
  • Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.
  • Specifications:
    • Capacity: 20 Ton (40,000 lbs.)
    • Min. Height: 7.125 in.
    • Max. Height: 12.625 in.
    • Ram Travel: 3.25 in.
    • Screw Adjustment: 2.5 in.
    • Saddle Width: 1.75 in.
    • Base Thickness: 1.25 in.
    • Base Size (L x W): 8.25 x 5.75 in.
    • Inner Package: 15.125 x 7.875 x 8.125 in.
    • Outer Package: 15 x 8 x 8 in.
    • Net Weight: 34 lbs.
    • Gross Weight: 35 lbs.
    • Air Inlet Fitting: 1/4 in. NPT
    • Air Pressure: 110-125 psi
    • Warranty: 1-Year
