ESCO

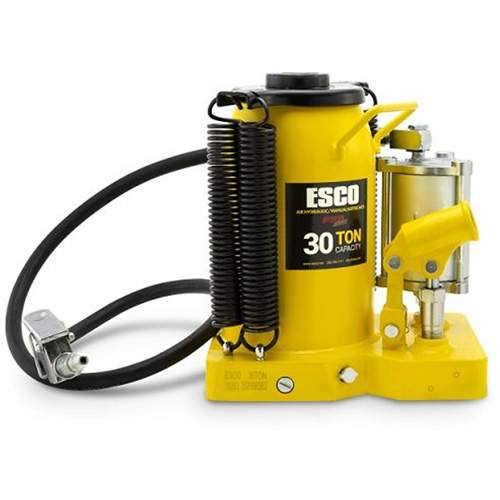

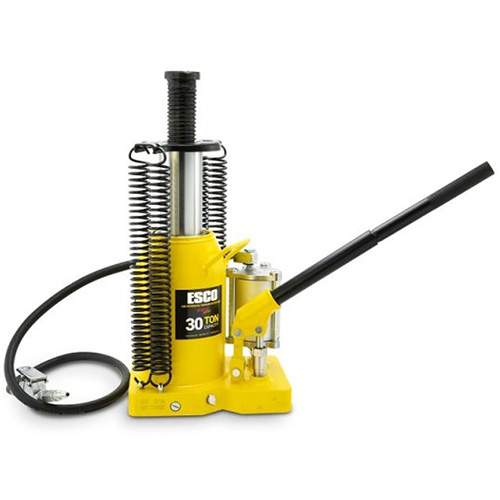

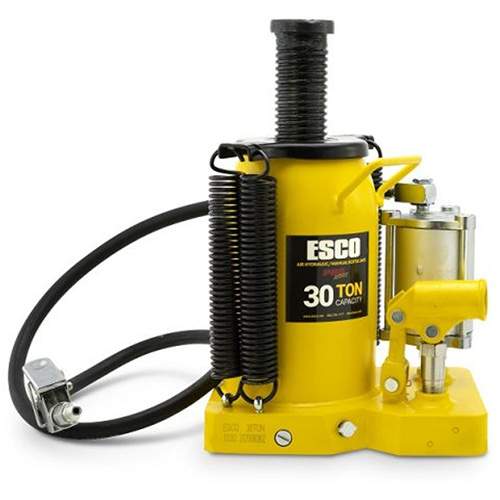

ESCO Pro Series 30 Ton Air Hydraulic Bottle Jack

Part No.: 10383

|

SKU: ESC10383

Free U.S. Shipping
  • ESCO 10383 ESCO Pro Series 30 Ton Air Hydraulic Bottle Jack

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$504.95

LOGIN for best possible pricing!

Ships in 3-6 days

Description

  • Fully welded cylinder and frame provide superior strength and extended service life.
  • Extra thick jack base provides exceptional support and stability in severe conditions.
  • The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
  • Chrome-plated piston for extra rust and corrosion resistance.
  • Fitted with a safety valve to prevent overloading.
  • Double spring design for controlled and safe descent while releasing pressure from the cylinder.
  • Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights.
  • Designed to be operated using air or manually with included two-piece lifting/lowering handle.
  • Includes 4 ft. swivel end air hose with easy-to-use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch for easier constant airflow while raising the jack to load.
  • Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.
  • Capacity: 30 Ton (60,000 lbs.)
  • Min. Height: 10.875 in.
  • Max. Height: 20 in.
  • Ram Travel: 6 in.
  • Screw Adjustment: 3.75 in.
  • Saddle Width: 1.75 in.
  • Base Thickness: 1.5 in.
  • Base Size L x W: 9.625 x 7.125 in.
  • Inner Package: /
  • Outer Package: 11 x 10 x 12 in.
  • Net Weight: 63 lbs.
  • Gross Weight: 64 lbs.
  • Air Inlet Fitting: 1/4 in. NPT
  • Air Pressure: 110-125 psi
  • Warranty: 1-Year
  • UPC: 816904024888
