E-Z Chamfer®

Part No.: 3838

|

SKU: CTA3838

Free U.S. Shipping

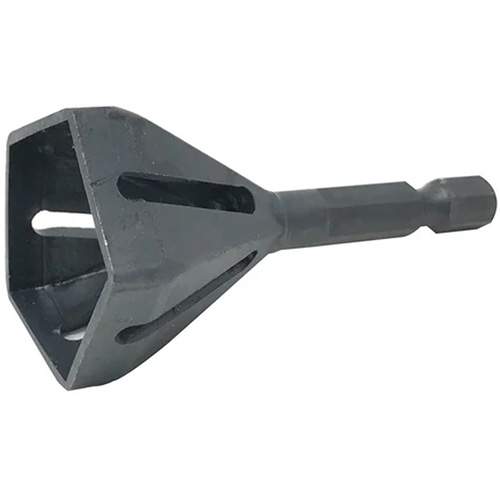

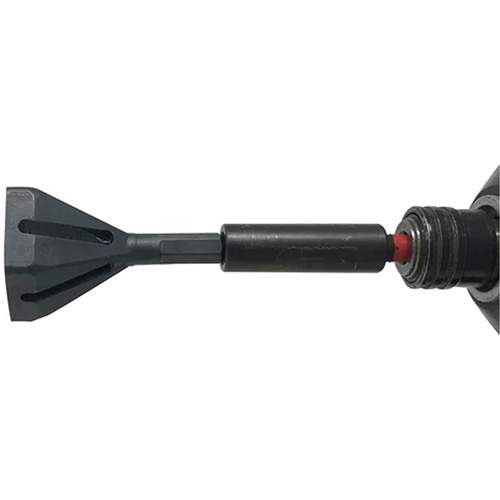

  • CTA 3838 E-Z Chamfer®

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$52.18

Ships in 3-6 days

Description

  • 5 Point design for quick and clean deburring
  • Range: 5/16 - 7/8" (8-22mm)
  • Single M2-HSS Construction - a tungsten-molybdenum high-speed steel suitable for a wide variety of applications

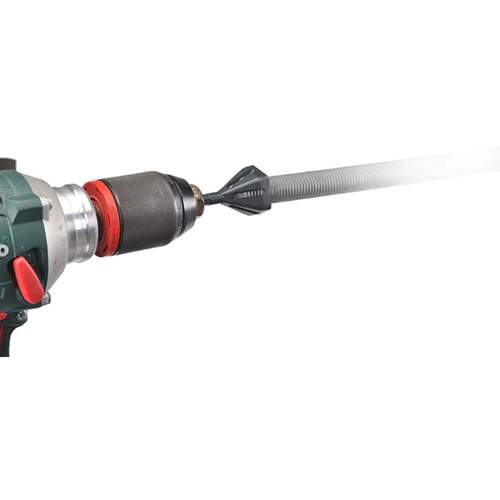

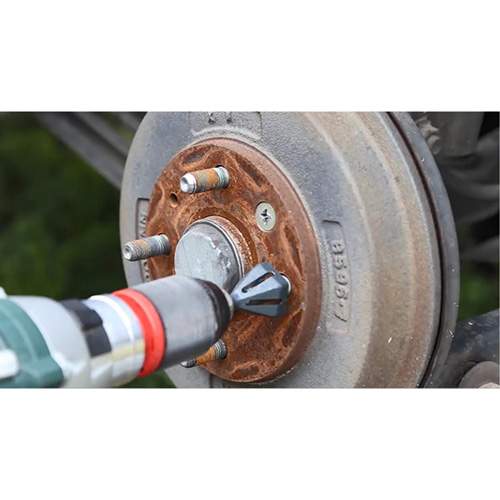

  • Efficiently removes burrs and ridges from bolts, pipes, threaded rods, bars, and dowels
  • Threads and burrs are sheared off, creating the perfect chamfer for starting a nut or threading die
  • Suitable for use on metals including:
    • MILD STEEL - U.S. Grade 2 - Metric Grade 4.8
    • HARD STEEL - U.S. Grade 5 - Metric Grade 8.8
    • VERY HARD STEEL - U.S. Grade 8 - Metric Grade 10.9
    • STAINLESS STEEL - 300 Series
    • SUPER HARD STEEL - U.S. Grade ASTM-A574 - Metric Grade 12.9
  • For best results, use a slow drill speed with medium pressure on most materials (harder materials will require a higher feed pressure)
  • On most applications, it is only necessary to chamfer the first 1 to 3 threads
  • USE AT LOW SPEED - MAXIMUM 800 RPM
  • IMPACT DRIVERS WILL REDUCE TOOL LIFE
  • E-Z CHAMFER (M2-HSS) recommended RPM according to size:
    • 8-12mm (800 RPM)
    • 12-18mm (600 RPM)
    • 18-22mm (400 RPM)
  • Larger diameter EZ Chamfer tool available: #3840
