Coxreels

Air/Electric Combo Reel With Hose, Cord And Less Accessory

Part No.: C-L350-5012-X

|

SKU: COXC-L350-5012-X

Shipping Calculated at Checkout

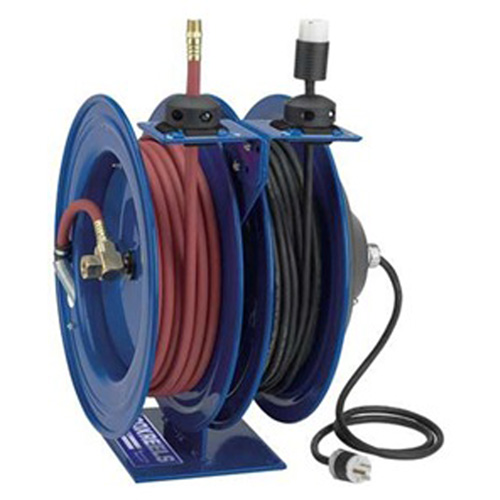

  • Coxreels C-L350-5012-X Air/Electric Combo Reel With Hose, Cord And Less Accessory

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$897.67

Ships in 11-14 days

Description

  • C series (combination) spring driven hose reels are a combination of two hose reels in one compact assembly
  • Perfect for applications that require pneumatic air and an electrical power feed
  • The single expanded mounting base creates stability and adds to the convenience of one mounting pattern
  • For indoor use only
  • Coxreels electric and pneumatic hose reels operate as two independent, self-retracting 50 foot trouble-free assemblies
  • Auto rewind easily wraps, stores & protects hose
  • Heavy gauge steel base & support post
  • Factory-matched cartridge-style spring motor
  • Brass NPT swivel inlet machined from solid
  • 1" solid steel axle with 1" lubricated precision bearings
  • Guide arms adjust to wall, floor and overhead positions
  • Multi-position lock ratchet secures hose at desired length
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
  • Compact two reel assembly
  • One convenient mounting base
  • Each reel operates independently
  • Professional grade heavy duty steel construction
  • Durable proprietary CPC powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Made in the U.S.A. sold & supported worldwide

Includes

  • (1) 5' pigtail and grounding plug (except on less hose models)

Specifications

I.D.

3/8"

O.D.

21/32"

Maximum Pressure

300 PSI

Rated

115 volts, 3 conductors (consult factory with 4 conductor requirements), 60 hz single phase

Swivel Seals

Nitrile

AWG

12 GA

Type

SJO

Amps

20

Weight

95 lbs.
