Coats

20,000lb Red 2-Post, 108" Drive-Thru, 208/230V

Part No.: 4T220SSR1

|

SKU: COA4T220SSR1

Free U.S. Shipping

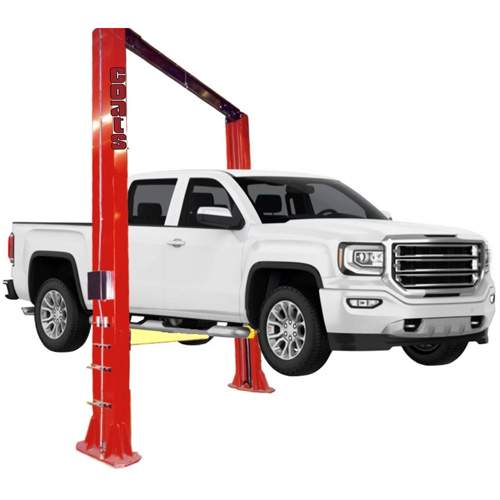

  • Coats 4T220SSR1 20,000lb Red 2-Post, 108" Drive-Thru, 208/230V

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$27,597.10

Ships in 3-6 days

Description

  • Capacity: 20,000 lb/9T
  • ALI Certification: Yes
  • Lifting Arms: 2 Piece Symmetric
  • Overall Height: 199 1/2" (Optional Heights Available)
  • Overall Width: 152"
  • Width Between Columns: 120 1/2"
  • Drive Thru Width: 106 1/2"
  • Under Bar Clearance: 192 1/2"
  • Lowered Height (Standard Lift Pad): 5"
  • Raised Height (Standard Lift Pad): 76"
  • Raise Height With Adapters: 85 1/2"
  • Front Arm Reach: 34" - 62"
  • Rear Arm Reach: 34" - 62"
  • Lifting Time: 75 Seconds
  • Standard Power Requirements: 230V - 60Hz - 1Ph - 20amp 4HP/2 kw motor
  • Shipping Weight: 3,850 lb
  • Part Numbers: 4T220SSR1 / 4T220SSB1
