Coats

10,000lb Blue 2-Post, 102" Drive-Thru, 220V, 75"H

Part No.: 4TP21NSB1

|

SKU: COA4TP21NSB1

Free U.S. Shipping

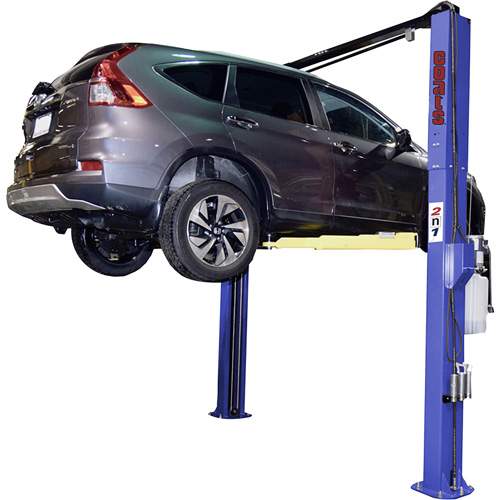

  • Coats 4TP21NSB1 10,000lb Blue 2-Post, 102" Drive-Thru, 220V, 75"H

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$9,974.11

Ships in 3-6 days

Description

  • Premium bake powder coat finish
  • 3 1/2" steel pulleys & 6 x 36 cables
  • Columns: 1 1/2" x 2 1/2" with inner tube support
  • Reinforced carriage arms pin holes
  • Replaceable plated gear-style arm restraints
  • Carriage mounted rubber door bumper guards
  • Single point release controls on either column
  • US-made Bucher power unit
  • 70 1/2" stroke cylinders
  • Field adjustable height setting
  • Rubber power unit motor mounts
  • 3-piece retractable arms front & rear
  • Capacity: 10,000 lbs / 4.5T
  • Dimensions:
    • Height 138" or 148"
    • Overall width 135-1/2"
    • Width between columns 112-3/4"
    • Drive thru width 92" symmetric / 100"
    • Under bar clearance 131" or 141"
    • Height to lowered lift pad 4.5"
    • Raised height with standard pad 76"
    • Raised height with adapters 87"
    • Front arm reach 18" to 44" symmetric
    • Rear arm reach 33" to 62"
  • First lock position from floor 11 1/2"
  • Lifting time: 55 seconds
  • Standard power requirements: 230V, 50/60 Hz, 1 PH, 20 amp
  • Shipping weight: 1,980 lbs / 900 kg
  • Models: 4TV21NSR1, 4TV21NXR1, 4TP21NSR1
