BVA

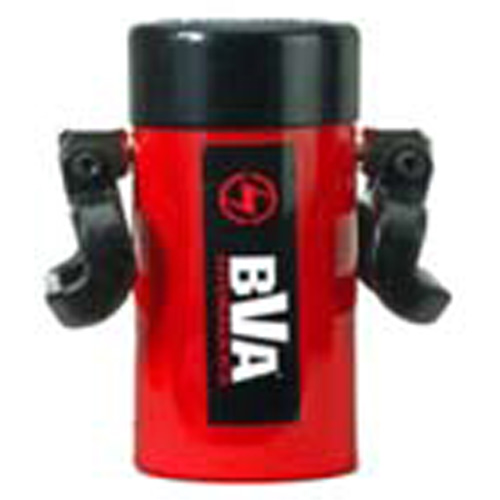

55 Ton 4 Inch Stroke Single Acting Cylinder

Part No.: H5504

|

SKU: BVAH5504

Free U.S. Shipping

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,361.84

In Stock

ToolDiscounter.com Ratings on Shopper Approved

Customer Reviews

Description

Single Acting Cylinder

    features:
  • 40 models
  • Collar fixture threads
  • Rod wiper seals out dirt and contamination
  • Two base mounting holds on most models
  • High strength steel construction from gun drilled solid bar
  • High flow 3/8 inch NPTF couplers
  • Collar thread protector
  • One piece high grade alloy bearing for side load protection and long life
  • Polyurethane cup seal provides for optimum performance
  • Industrial hard chrome plated ram helps prevent rust and corrosion
  • Solid steel cylinder body
  • Heavy duty return spring provides quicker retraction
  • Ideal for lifting and pressing
  • Maximum working pressure: 10,000 psi/700 bar
    specifications:
  • model: h5504
  • cylinder capacity (tons): 55
  • stroke (inches): 3.98
  • cylinder effective area (squared inches): 10.99
  • internal pressure at Capacity (psi): 10,009
  • oil capacity (cubed inches): 43.74
  • collapsed height (inches): 8.94
  • extended height (inches): 12.92
  • cylinder bore diameter (inches): 3.74
  • outside diameter (inches): 5.00
  • plunger diameter (inches): 3.15
  • saddle diameter (inches): 2.76
  • base to inlet port (inches): 1.22
  • collar thread (inches): 5 - 12
  • collar thread length (inches): 2.17
  • base mounting hold
  • bolt circle (inches): 3.75
  • thread (inches): 1/2 - 13UNC
  • thread depth (inches): 0.75
  • weight (lbs): 42.5
