BVA

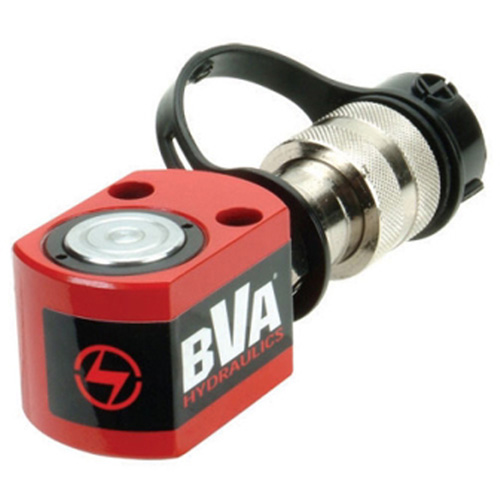

5 Ton .63 Inch Stroke Single Acting Cylinder

Part No.: H0500

|

SKU: BVAH0500

Free U.S. Shipping

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$305.61

LOGIN for best possible pricing!

In Stock

ToolDiscounter.com Ratings on Shopper Approved

Customer Reviews

Description

Single Acting Cylinders

    features:
  • 40 models
  • Collar fixture threads
  • Rod wiper seals out dirt and contamination
  • Two base mounting holds on most models
  • High strength steel construction from gun drilled solid bar
  • High flow 3/8 inch NPTF couplers
  • Collar thread protector
  • One piece high grade alloy bearing for side load protection and long life
  • Polyurethane cup seal provides for optimum performance
  • Industrial hard chrome plated ram helps prevent rust and corrosion
  • Solid steel cylinder body
  • Heavy duty return spring provides quicker retraction
  • Ideal for lifting and pressing
  • Maximum working pressure: 10,000 psi/700 bar
    specifications:
  • model: h0500
  • cylinder capacity (tons): 5
  • stroke (inches): 0.63
  • cylinder effective area (squared inches): 1.10
  • internal pressure at Capacity (psi): 9,091
  • oil capacity (cubed inches): 0.69
  • collapsed height (inches): 1.61
  • extended height (inches): 2.24
  • cylinder bore diameter (inches): 1.18
  • outside diameter (inches): 2.36 x 1.58
  • plunger diameter (inches): 0.98
  • base to inlet port (inches): 0.75
  • base mounting hold
  • bolt circle (inches): 1.10
  • thread (inches): 0.2
  • weight (lbs): 2.9
