BVA

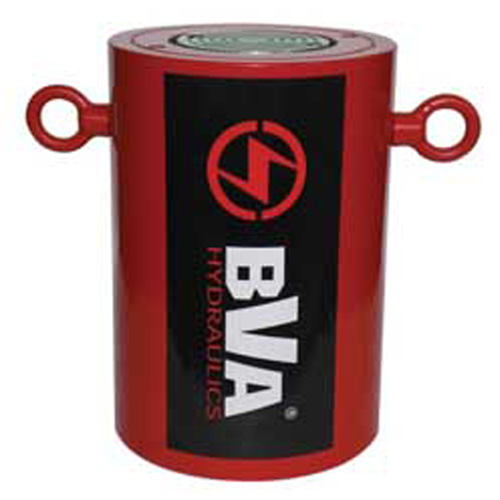

150 Ton, 5.91 Inch Stroke High Tonnage Double Acting Cylinde

Part No.: HDG15006

|

SKU: BVAHDG15006

Free U.S. Shipping
  • BVA HDG15006 150 Ton, 5.91 Inch Stroke High Tonnage Double Acting Cylinde

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$3,878.38

LOGIN for best possible pricing!

Ships in 7-10 days

Description

150 ton, 5.91 inch Stroke High Tonnage Double Acting Cylinders (HDG Series)

    Features

  • Cylinders are Burnish Rolled for a Smooth Precision Mirror Finish
  • Industrial Hard Chrome Plated Ram Prevents Scratching & Corrosion
  • Base Mounting Holes on All Models
  • Rod Wiper Seals Out Dirt & Contamination
  • High Strength Steel Construction From Gun Drilled Solid Bar
  • High Flow 3/8 inch NPTF Couplers
  • Maximum Working Pressure: 10,000 psi / 700 bar


    • usage:
  • Ideal for Pulling & Pushing Applications


    • specifications:
  • Cylinder Capacity: 150 tons
  • Stroke: 5.91 inches
  • Maximum Cylinder Push Capacity: 153.90 tons
  • Maximum Cylinder Pull Capacity: 75.00 tons
  • Cylinder Push Effective Area: 30.78 in2
  • Cylinder Pull Effective Area: 14.96 in2
  • Oil Push Capacity: 181.75 in3
  • Oil Pull Capacity: 88.32 inches
  • Collapsed Height: 11.65 inches
  • Extended Height: 17.56 inches
  • Cylinder Bore Diameter: 6.26 inches
  • Outside Diameter: 8.07 inches
  • Plunger Diameter: 4.49 inches
  • Saddle Diameter: 3.70 inches
  • Base to Adv. Port: 2.40 inches
  • Top to Return Port: 2.22 inches
  • Bolt Circle: 5.12 inches
  • Thread: M12 inches
  • Thread Depth: 0.87 inches
  • Weight: 143.00 lbs
