Belaire Compressors

20 Hp Two Stage Electric Duplex Air Compressor

Part No.: 6312D4

|

SKU: BEL6312D4

Free U.S. Shipping

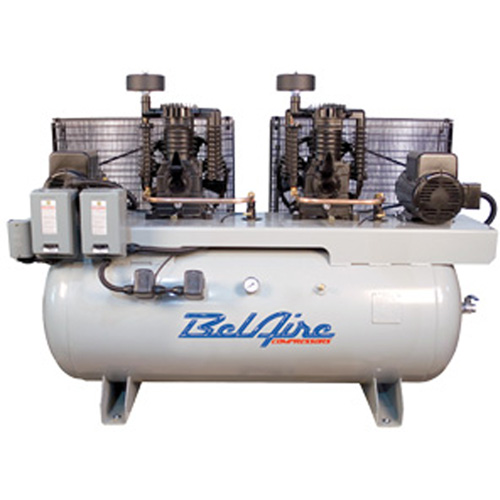

  • Belaire Compressors 6312D4 20 Hp Two Stage Electric Duplex Air Compressor

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$8,711.55

Ships in 7-10 days


Description

20 HP Two Stage Electric Duplex Air Compressor

The BelAire duplex compressors are available up to 20 HP and can deliver up to 50.50 acfm on single phase power. BelAire duplex compressors features two pumps and motors, along with an alternator which ensures optimal performance. BelAire Two Stage compressors come with a full 2 year warranty (including valves).

    Features

  • Alternator
  • Magnetic motor starters
  • Start - stop dual pressure switch control
  • 1 in. tank discharge valve
  • Fully enclosed belt guard
  • ASME tank and safety valves

  • specifications:
  • Horsepower: 20
  • Motor Configuration: 2 - 10 HP motors
  • Electric Power: 460 volts, 3 phases
  • cfm Displacement: 89.0
  • cfm at 100 psi: 70
  • Tank Size Gallon: 120
  • Shipping Weight: 990 lbs
  • Overall Size: 77 in. x 27 in. x 63 in.
