Coalescing / Oil-Removing Filter ATD7785 | Tool Discounter

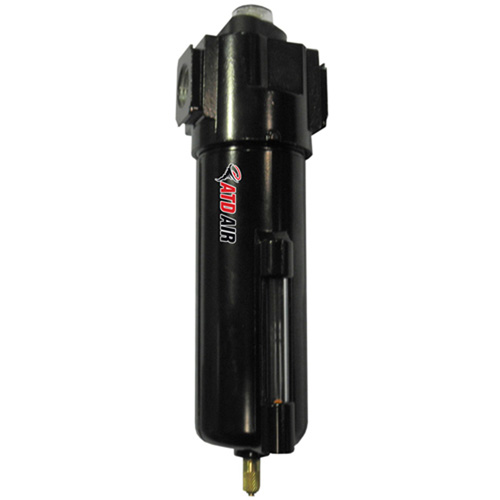

Coalescing / Oil-Removing Filter

Manufacturer: ATD

Manufacturer Part No.: 7785

Our Part No.: ATD7785

Price: $122.80

In Stock



Description

Coalescing / Oil-Removing Filter

Coalescing / Oil-Removing Filter. Coalescing filters function in a different way from general purpose filters. Air flows from inside to outside through a coalescing media. Coalescing by definition means “to come together.” It is a continuous process by which small aerosols come in contact with the fibers in the filter media uniting with other collected aerosols and growing to emerge as a droplet on the downstream surface of the media which by its weight is gravitationally drained away. For maximum performance and efficiency, coalescing filters should be preceded by a general purpose filter.

    Features:
  • Pipe Size: 1/2 inch
  • Bowl Type: metal
  • Operating Temperature: 40 to 160 degree F
  • Maximum Flow Pressure: 250 psig. 37 SCFM maximum
  • 9 oz. bowl capacity
  • overnight drain
  • .01 micron filter element.
  • Removes submicron particles, particularly oil.
  • Applications include paint spraying, pneumatic control instrumentation, printing and protection of air bearings.
  • For maximum efficiency, a pre-filter needs to installed upstream of oil-removing filter.
  • Weight: 5.00 lbs.
