American Forge & Foundry

10 Ton Air End Lift

Part No.: 3598

|

SKU: AFF3598

Free U.S. Shipping

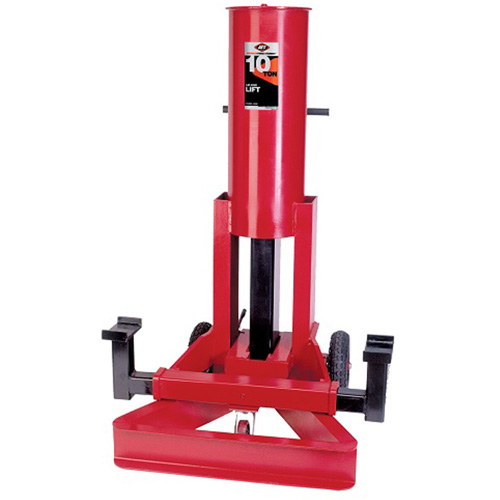

  • American Forge & Foundry 3598 10 Ton Air End Lift

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$4,015.85

In Stock

Description

10 ton Air End Lift

    Features

  • The AFF Air End Lift is designed with an extra-wide stance to lift the entire front or rear of large trucks, buses, industrial, heavy-duty construction equipment, and large farm vehicles.
  • 10-ton capacity achieved at 200-PSI air supply
  • 4 inch x 6 inch steel saddles adjust between 36 inch and 50 inch widths to accommodate a wide variety of vehicle applications
  • Saddle arms reversible for low height loads
  • Three-way air valve for fine lifting and lowering control
  • Automatic mechanical safety lock engages at five lift heights from 17-1/2 inches to 50 inches
  • Two air control valve fittings - one for shop air supply and one for a Schrader valve
  • Front swivel caster and two pneumatic rear tires for easy maneuverability
  • 13 inch Forward reach (distance from cylinder to saddles)
    Specifications:
  • Capacity: 10 tons
  • Low Height: 12 1/2 inches
  • High Height: 50 inches
  • Length: 39 inches
  • Base Width: 36 inches
  • Overall Height: 67 inches
  • Shipping Weight: 750 lbs
