Fluke

Loop Calibrator

Part No.: 707

|

SKU: FLU707

Free U.S. Shipping

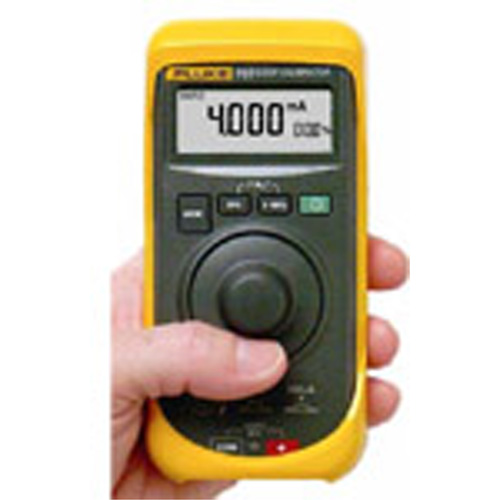

  • Fluke 707 Loop Calibrator

Color, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$620.99

$1,381.98

55% Off Promo Ends 04/30/2026

Discontinued

Only 1 remaining in stock

Description

Loop Calibrator

    Features

  • The fastest, one-handed tool for loop checks.
  • The Fluke 707 Loop Calibrator is a high performance solution for calibration, repair and maintenance of current loops. The new Quick Click knob making it extremely fast and easy to use. It features: One handed user interface with Quick Click detented knob
  • mA sourcing, simulation and measurement
  • 0.015 percent accuracy and 0.001 mA resolution
  • Simultaneous mA and percent of span display
  • Selectable step or ramp outputs
  • 24 V Loop supply with mA measure, including 250 ohms HART resistor
  • 0-28 VDC measurement to check Loop Voltage
  • Easy battery exchange without opening the case
  • Compact case with separate protective holster
  • Three year warranty
  • The fast, one-handed tool for loop checks. Just click to calibrate.
  • This feature-rich solution combines the best features push-button and knob-base loop calibrator and offers: Large display and simple, quick-click interface for easy one-handed operation.
  • Simultaneous mA and percent readout for quick, easy interpretation of readings.
  • mA accuracy of 0.015 percent, superior to other loop calibrators in this price range.
  • 1 microampere resolution for mA source, simulate and measure.
  • Push button 25 percent steps for fast, easy linearity checks.
  • 0-100 percent span check for fast confirmation of zero and span.
  • Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests.
  • 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
  • Measures V dc to 28 V.
  • Single 9V battery that is easily changed without braking calibration seal
  • 0 - 20 mA or 4 - 20 mA default start up modes.
  • Innovative output adjustment dial with 1 microampere and 100 resolution.
  • HART mode connects 250 ohms resistor in series with 24 V loop for compatibility with HART communicators.
    Loop Calibrator includes:
  • AC70A Alligator Clips
  • C10 protective yellow holster with Flex-Stand
  • Instruction sheet
  • TL75 safety-designed test lead set
    Specifications:
    Current Measurement
  • Range: 0 to 24 mA
  • Resolution: 0.001 mA
  • Accuracy: 0.015 percent Rdg + 2 LSD
    • Current Sourcing
  • Range: 0 to 20 mA or 4 to 20 mA
  • Accuracy: 0.015 percent Rdg + 2 LSD
  • Drive Capability: 1200 ohms; 950 ohms at 20 mA in HART mode
    • Current Simulation
  • Range: 0 to 20 mA or 4 to 20 mA
  • Accuracy: 0.015 percent Rdg + 2 LSD
  • Ext. loop voltage requirement: 12-30 V
  • Loop Power While measuring mA, 24 V
    • Voltage measurement
  • Range: 0 to 28 V DC
  • Resolution: 1 mV
  • Accuracy: 0.015 percent Rdg + 2 LSD
    Environmental Specifications:
  • Operating Temperature-10 degrees C to 55 degrees C
  • Storage Temperature-30 degrees C to 60 degrees C
  • Humidity (Without Condensation)0 to 90 percent (0 degrees C to 35 degrees C); 0 to 70 percent (35 degrees C to 55 degrees C)
  • Temperature Coefficient-10 degrees C to 18 degrees C, 28 degrees C to 55 degrees C, +/-.005 percent of range per degrees C
    Safety Specifications:
  • CSA C22.2 No. 1010.1:1992
  • EMC: EN50082-1:1992 and EN55022:1994 Class B
  • Maximum voltage 30V (protection circuit for 230V)
    Mechanical and General Specifications:
  • Size: 152 x 70 x 41 mm
  • Weight:224 g (340 g including holster)
  • Batteries:One 9V battery Alkaline
  • Warranty: Three years
  • Shock and Vibration per MIL-T-28800 for a Class 2 Instrument
  • Display current and percent of span: Yes
  • Auto step, auto ramp: Yes
  • Span Check: Yes
