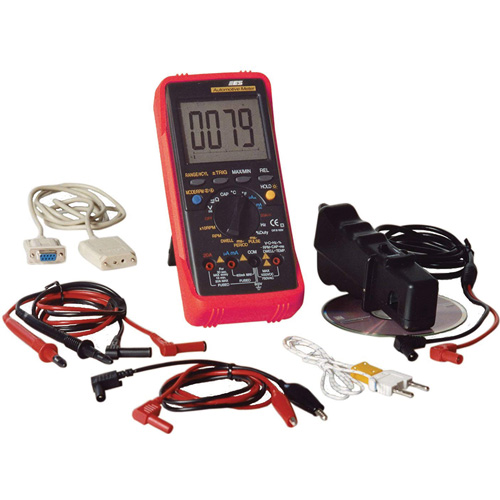

Automotive Meter with PC Interface
Professional grade meter with serious diagnostic capabilities. The #595 can be used with your PC or notebook computer for enhanced testing. PC software & cable are included free.
- Huge 2 1/4 inch high LCD display with bar graph and backlight.
- MS-Pulse Width function for testing the on-time of fuel injectors.
- Max/Min function captures high or low readings for better diagnostic capability.
- RS-232 PC Interface.
- Desirable fused 20 Amp test range.
- Auto Power-Off, saves batteries.
- 4 step adjustable trigger levels.
- 58 test ranges.
- Special access panel for fuses.
- Hard case for safe storage.
Includes:
- Probe style test leads
- Alligator clip test leads
- Temperature probe
- RS-232 PC interface cable
- Free Windows Software on CD
- RPM pickup w/sensitivity adjust
- Hard storage case
- DC Volts: 0-400mV, 4V, 40V, 400V, 1000V
- AC Volts: 0-400mV, 4V, 40V, 400V, 750V
- DC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
- AC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A
- Ohms: 0-400, 4K, 40K, 400K, 4M, 40M
- Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
- RPM 4: 0-4,000 RPM, 12,000 RPM x 10
- RPM2/DIS: 0-4000 RPM, 6,000 RPM x 10
- Dwell: 1, 2, 3, 4, 5, 6, 8, 10, 12 cylinders
- Frequency: 0-5Hz, 50Hz, 500Hz, 5kHz, 30kHz
- Duty Cycle: 0.1 99.9 percent
- Pulse Width: 2.0ms-10.0ms
- Period: 2.0ms - 20.0 ms
- Temperture -4 to 1400 Fahrenheit
- Continuity: Audible Beep
- Diode Test
